Combination Towel / Waste Units

Combination Paper Towel / Waste Receptacle Units

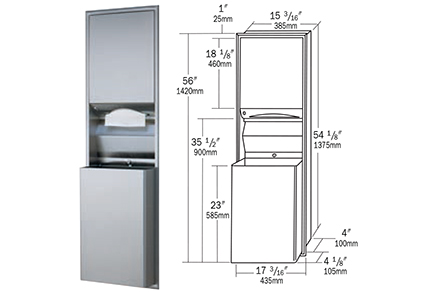

B-3944 ClassicSeries Recessed Convertible

• Unit includes convertible folded paper towel module and 12-gallon waste receptacle module which can be interchanged with an automatic, universal or touch-free roll towel module and 18-gallon waste receptacle module, respectively.
• Cabinet is not replaced when changing modules.
• Satin-finish stainless steel. Seamless beveled flange.
• Dispenses 600 C-fold or 800 multifold towels.
• Removable waste receptacle is locked into cabinet.
• Receptacle is 8" (205mm) deep with capacity of 12-gal. (45.5-L); extends 4 1⁄8" (105mm) from wall.
• Rough Wall Opening: 16" W, 54 3⁄4" H, 4" min. depth (405 x 1390 x 100mm). Mtg. Ht.: 67–74" (1700–1880mm) to top of unit. Barrier-Free, 60 1⁄2" (1535mm).

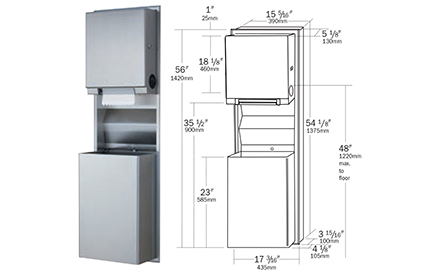

• Unit includes convertible universal, roll paper towel module and 12-gallon waste receptacle module which can be interchanged with an automatic, universal or folded towel module and 18-gallon waste receptacle module, respectively.
• Cabinet is not replaced when changing modules.
• Satin-finish stainless steel. Seamless beveled flange.
• Touchfree, pull-towel mechanism dispenses 12" (305mm) length per pull of universal roll paper towels. Accommodates 8" (205mm) wide, up to 8" (205mm) diameter rolls, 800 ft (244m) long, plus 3 1⁄2" (90mm) diameter stub roll with automatic transfer.
• Removable waste receptacle is locked into cabinet.
• Receptacle is 8" (205mm) deep with capacity of 12-gal. (45.5-L); extends 4 1⁄8" (105mm) from wall.
• Rough Wall Opening: 16" W, 54 3⁄4" H, 4" min. depth (405 x 1390 x 100mm). Av. Mtg. Ht.: 67–74" (1700–1880mm) to top of unit. Barrier-Free, 60 1⁄2" (1535mm).

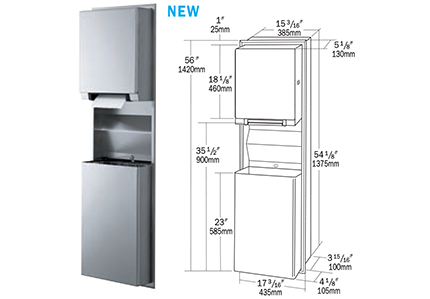

B-3974 ClassicSeries Recessed Convertible

• Convertible automatic universal, roll paper towel dispenser and 12-gal. waste receptacle module can be interchanged with a universal, touchfree module or a folded towel module and 18-gal. waste receptacle, respectively.
• Cabinet is not replaced when changing modules.
• Satin-finish stainless steel. Seamless beveled flange.
• Removable waste receptacle is locked into cabinet.
• Receptacle is 8" (205mm) deep with a capacity of 12-gal. (45.5L); extends 4 1⁄8" (105mm) from wall.
• Rough Wall Opening: 16" W, 54 ¾" H, 4" min. depth (405 x 1390 x 100mm). Mtg. Ht.: 67-74" (1700-1880mm) to top of unit. Barrier-Free, 60 ½" (1535mm).
• Battery requirements: 4 Alkaline D Cells (not included).

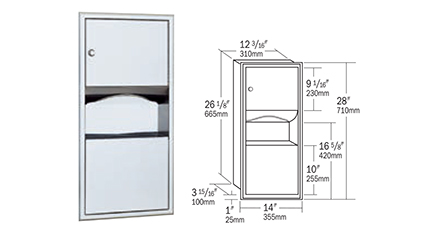

B-369 ClassicSeries Recessed

• C-fold or 475 multifold towels.
• Knob-latch retains door.
• Removable waste container has 2-gal. (7.6-L) capacity.
• Rough Wall Opening: 12 5⁄8" W, 26 5⁄8" H, 4" min. depth (320 x 675 x 100mm). Av. Mtg. Ht.: 71" (1805mm) to top of unit; Barrier-Free, 51 1⁄2" (1310mm).

• Satin-finish stainless steel. Door has 90° return, conceals flange.
• Dispenses 600 C-fold, 800 multifold or 1100 single fold towels.
• Removable leak-proof, 12-gal. (45.5-L) waste container.
• Rough Wall Opening: 16" W, 54 3⁄4" H, 7 7⁄8" min. depth (405 x 1390 x 200mm). Av. Mtg. Ht.: 67–74" (1700–1880mm) to top of unit; Barrier-Free, 60 1⁄2" (1535mm).

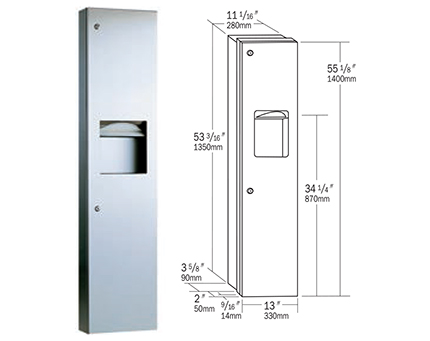

B-38032 TrimLineSeries Semi-Recessed

• Satin-finish stainless steel. Door has 90° return, conceals flange. Skirt for 4" (100mm) walls.
• Dispenses 600 C-fold, 800 multifold or 1100 single fold towels.
• Uncovered, removable, leak-proof, 6.3-gal. (24-L) waste container.
• Rough Wall Opening: 11 1⁄2" W, 53 5⁄8" H, 3 3⁄4" min. depth (290 x 1360 x 95mm). Av. Mtg. Ht.: 67–74" (1700–1880mm) to top of unit; Barrier-Free, 60 3⁄4" (1545mm).

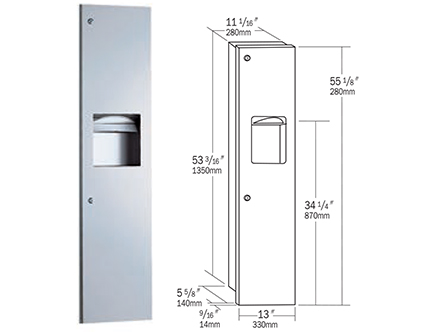

B-3803 TrimLineSeries Recessed

• Satin-finish stainless steel. Door has 90° return, conceals flange.
• Dispenses 600 C-fold, 800 multifold or 1100 single-fold towels.
• Removable, leak-proof, 6.3-gal. (24-L) waste container.
• Rough Wall Opening: 11 1⁄2" W, 53 5⁄8" H, 5 3⁄4" min. depth (290 x 1360 x 145mm). Av. Mtg. Ht.: 67–74" (1700–1880mm) to top of unit; Barrier-Free, 60 3⁄4" (1545mm).

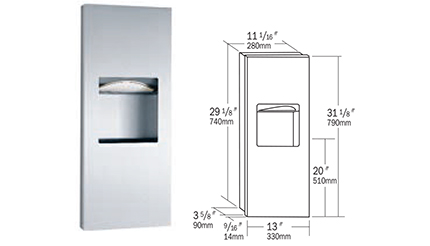

B-36903 TrimLineSeries Recessed

• Satin-finish stainless steel. Door has 90° return, conceals flange.
• Dispenses 300 C-fold or 400 multifold towels.
• Removable, leak-proof, 1.6-gal. (6.1-L) waste container.
• Rough Wall Opening: 11 1⁄2" W, 29 1⁄2" H, 3 3⁄4" min. depth (290 x 750 x 95mm). Av. Mtg. Ht.: 69" (1753mm) to top of unit; Barrier-Free, 51" (1295mm).

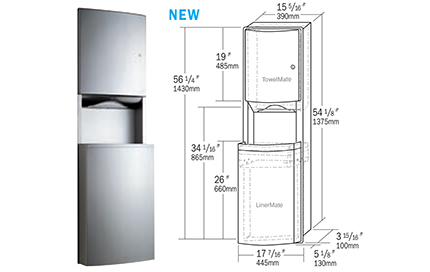

B-43944 ConturaSeries Recessed with TowelMate & LinerMate

• Satin-finish stainless steel. Flush tumbler lock.
• Dispenses 600 C-fold or 800 multifold towels. Waste receptacle has 15.0-gal. (56.8-L) capacity; extends 5 1⁄8" (130mm) from wall.
• Removable front panel for easy cleaning.
• Rough Wall Opening: 16" W, 54 3⁄4" H, 4" min. depth (405 x 1390 x 100mm). Av. Mtg. Ht.: 67–74" (1700– 1880mm) to top of unit. Barrier-Free, 61 1⁄4" (1555mm).

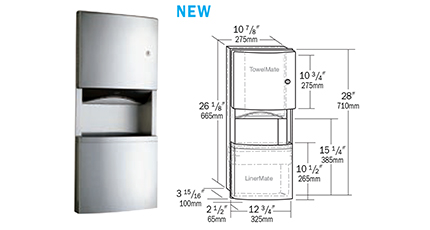

B-4369 ConturaSeries Recessed with TowelMate & LinerMate

• Satin-finish stainless steel. Flush tumbler lock.
• Dispenses 350 C-fold or 475 multifold towels.
• Waste receptacle has 3.0-gal. (11.3-L) capacity; extends 2 1⁄2" (65mm) from wall.
• Removable front panel for cleaning.
• Wall Opening: 11 3⁄8" W, 26 5⁄8" H, 4" min. depth (290 x 675 x 100mm). Av. Mtg. Ht.: 71" (1805mm) to top of unit; Barrier-Free, 52 3⁄4" (1340mm).


Optional Accessories

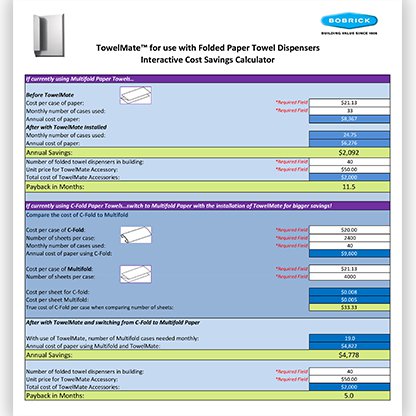

TowelMate® Towel Dispenser/Retainer

• Retrofit: ConturaSeries® B-4262, B-4369, B-43699, B-43944, B-43949 manufactured proir to June 2010; ClassicSeries® B-359, B-369, B-3699; TrimLineSeries™ B-35903 & B-36903.
• Material: 24 ga stainless steel, 2B finish; 3/8" diam. black nylon rod. Unit fabricated of 50%-70% recycled stainless steel. Reduces paper towel waste by 20-40%.
• Dispenses one towel at a time. Easy-load channel/retainer saves time.
• Field installation into existing cabinets without tools.

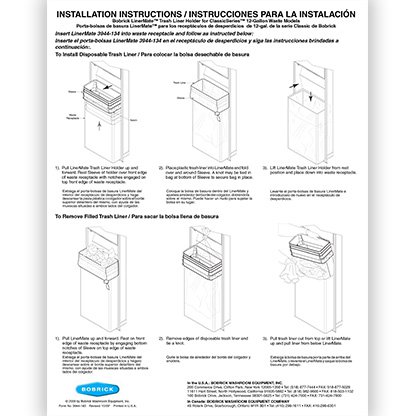

LinerMate® Liner Retainer

• Retrofit: ConturaSeries® B-4262, B-4369, B-43699, B-43944, B-43949 manufactured proir to June 2010.
• Liner overhang is eliminated. Gapless fit eliminates misdirected trash from collecting outside liner.
• Saves maintenance time and expense by reducing the frequency of liner change-overs.
• Easy installation and removal of liners without unlocking waste receptacle.
