Towel and Waste Combo Units

Frost Product Specifications

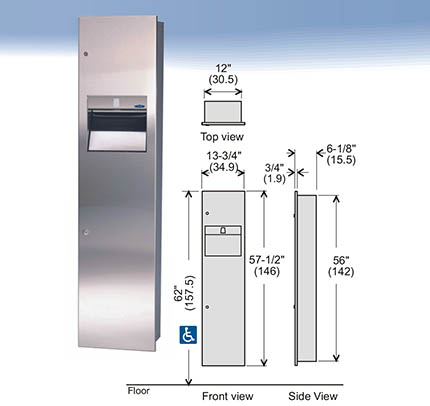

Combination Dispenser and Disposal Fixture

• Code 400A: Stainless type 304 fully recessed;  Code 400B: Stainless type 304 semi recessed;  Code 400C: Stainless type 304 surface mounted;  Code 400-14A: Stainless type 304 fully recessed 4" deep;  Code 400-14C: Stainless type 304 surface mounted 4" deep;  Code 400PL: Solid core plastic laminate fully recessed.
• Specifications: Our largest combination fixture is ideal for high traffic areas.
• Features: Universal towel dispenser will accept all standard roll and single fold towels. Note: 400-14 units will dispense multifold towels only. Stainless steel (304, # 4 brushed) towel cradle. Heavy duty 18 gauge stainless steel door (304, # 4 brushed finish). Secured with two tumbler keyed locks. All doors are hinged with full length stainless steel piano hinges. Counterbalanced stainless steel waste inlet door (20 ga.) provides maximum fire protection. All welded recessed body fabricated from 20 gauge corrosion resistant galvanized steel.
• Capacity: Removable leakproof roto moulded liner with 32 litre capacity (7 gal. imp., 8.5 gal. US). Code 400-14: 18 litres (4 gallons).
• Installation: Provide 56-3/8" (143.8) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 400B units, 4" (10.2 cm) deep for 400-14A. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 62" (157.5cm).

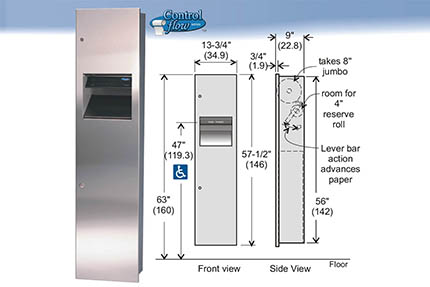

Control Roll Dispenser

• Code 400A-50: Stainless type 304 fully recessed; Code 400B-50: Stainless type 304 semi recessed; Code 400C-50: Stainless type 304 surface mounted.
• Specifications: Additional features to Code 400: Extra deep combination fixture is ideal for high traffic areas. Universal towel dispenser will accept all standard 8" roll towels. Controlled delivery with easy push action lever, takes up to 4" diameter reserve roll to eliminate paper towel waste. Stainless steel (safety guarded) saw tooth cutting bar.
• Capacity: Removable galvanized steel liner (26 ga.) with 47 litre capacity (10.5 gallons).
• Installation: Provide 56-3/8" (148.3) high x 12-1/2" (31.7) wide x 8-1/2" (21.5) deep wall opening. Drill mounting holes as required.
• For unrestricted access, height of top of unit to floor must not exceed 63" (160), this will result in the push bar lever being 47" (119.3 cm) or less from floor.

Touch Free Dispenser

• Code 400A-70: Stainless type 304 fully recessed; Code 400B-70: Stainless type 304 semi recessed; Code 400C-70: Stainless type 304 surface mounted.
• Additional features to Code 400-50: Universal towel dispenser will accept jumbo roll towels max. 8" diameter. Large detection zone senses hand when placed in a natural position under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries. 4 alkaline batteries have been independently tested and found to provide 35,000 hand dries. AC adaptor also included.

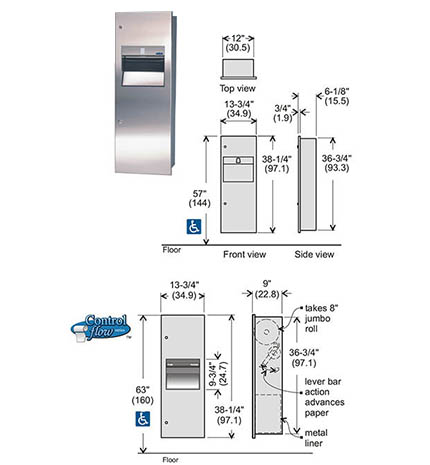

Compact Dispenser and Disposal

• Code 410A: Stainless type 304 fully recessed; Code 410B: Stainless type 304 semi recessed; Code 410C: Stainless type 304 surface mounted; Code 410-14A: Stainless type 304 fully recessed 4" deep; Code 410-14C: Stainless type 304 surface mounted 4" deep; Code 410PL: Solid core plastic laminate fully recessed.
• Specifications: The 410 is our medium sized combination fixture, with all specifications equal to the Frost code 400 listed on previous page.
• Features: Universal towel dispenser will accept all standard roll and single fold towels. Note: 410-14 will dispense multifold towels only.
• Capacity: Removable leakproof roto moulded liner with 15 litre capacity (4 gallons). Code 410-14: galvanized welded liner, 9 litres (2 gallons).
• Installation: Provide 37-1/4" (94.6) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 410B units, 4" (10.2 cm) deep for 410-14A. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 57" (144.7cm).

• Code 410-50A: Control Roll, stainless, fully recessed; Code 410-50B: Control Roll, stainless, semi recessed; Code 410-50C: Control Roll, stainless, surface mount.
• Specifications: Extra deep combination fixture is ideal for high traffic areas. Universal towel dispenser will accept all standard 8" wide roll towels. Controlled delivery with easy push action lever. Removable galvanized steel liner (26 ga.) with 18 litre capacity (4 gallons). Provide 37-1/4" (94.6) high x 12-1/2" (31.7) wide x 8-1/2" (21.5) deep wall opening. Drill mounting holes as required.

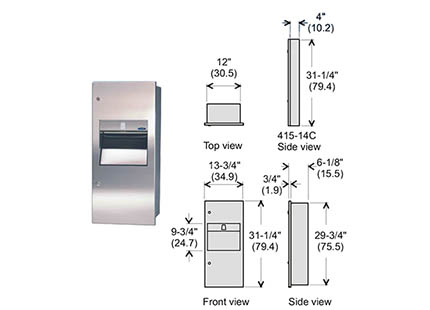

Mini Dispenser and Disposal

• Code 415A: Stainless type 304, fully recessed; Code 415B: Stainless type 304, semi recessed; Code 415C: Stainless type 304, surface mounted; Code 415-14A: Stainless type 304, fully recessed 4” deep; Code 415-14C: Stainless type 304, surface mounted 4” deep; Code 415PL: Solid core plastic laminate, fully recessed.
• Specifications: The 415 is our smallest combination fixture, all specifications equal to the Frost code 410 listed at top of this page. Code 415-14 dispenses multifold only.
• Capacity: Removable roto moulded plastic liner, 8.5 litre capacity (1.9 gallons). Code 415-14: 4.25 litres (.9 gallons, galvanized steel liner).
• Installation: Provide 30-1/4" (76.8) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 415B units, 4" (10.2 cm) deep for 415-14A units. Collar is secured between recessed body flange and wall. Drill mounting holes as required.

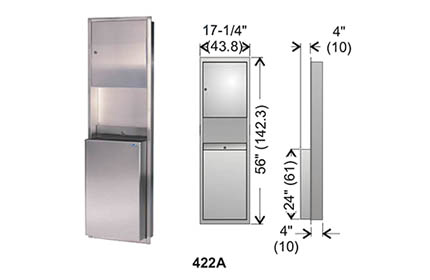

Combination Dispenser and Disposal

• Code 422A: Recessed, stainless steel, type 304; Code 422C: Surface mounted, stainless steel, type 304; Code 427: Comes with large capacity waste container.
• Specifications: Semi recessed combination dispenser/waste receptacle can be mounted into any wall configuration requiring a minimum of 4" depth.
• Features: Locking cabinet door hinged with full length stainless piano hinge.
• Designed to dispense 500 multifold towels. All welded construction with locking removable waste bin. Semi recessed design provides large capacity receptacle with minimum space. Code 427 provides extra large waste capacity. Comes with standard bag holder apparatus. Recessed wall body and waste container are 22 gauge stainless steel type 304 no. 4 finish.
• Capacity: Code 422A, 442C: 11 gal. (50 litres), Code 427: 15 gal. (68 litres).
• Installation: Provide wall opening 54-1/2" (138.9)h x 16" (40.6)w x 4" (10.2)d.

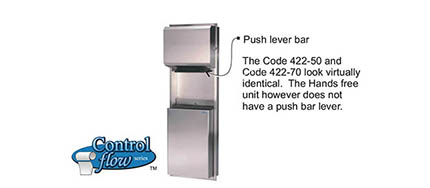

Combination Control Roll Dispenser and Disposal

• Code 422A-50: Stainless steel type 304, Recessed 4”; Code 422C-50: Stainless steel type 304, Surface Mounted; Code 427-50: Stainless steel type 304, Recessed 4” (comes with large waste receptacle).
• Specifications: The 422-50 has the same material specifications as the code 422 unit listed above.
• Control Roll: Control dispenser reduces paper waste. Designed to dispense jumbo roll towels max. 8" diameter (4" reserve roll).

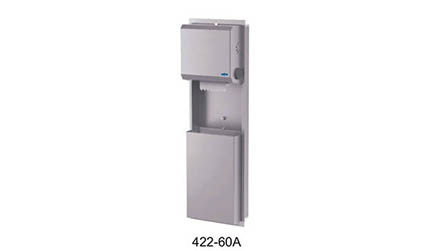

Auto Cut, Combination Dispenser and Disposal

• Code 422-60A: Stainless steel type 304, Recessed 4”; Code 422-60C: Stainless steel type 304, Surface Mounted; Code 427-60A: Stainless steel type 304, Recessed 4” with large waste receptacle.; Code 427-60C: Stainless steel type 304, Surface Mounted with large waste receptacle.
• Specifications: The 422-50 has the same material specifications as the code 422 unit listed above.
• Auto Cut Dispensing: When pulling on the exposed length of towel the dispenser will automatically cut an 11” (27cm) length of towel, a 3” length of towel is left to grab for next dispensing action.

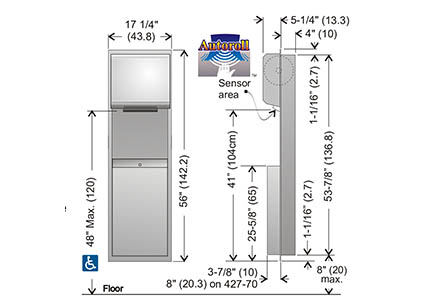

Hands Free Combination Dispenser and Disposal

• Code 422A-70: Stainless steel type 304, Recessed 4”; Code 422C-70: Stainless steel type 304, Surface Mounted; Code 427-70: Stainless steel type 304, Recessed 4” (comes with large waste receptacle).
• Specifications: The 422-70 has the same material specifications as the code 422 unit listed at the top of this page.
• Touch Free: Large detection zone senses hand when placed in a natural position under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries. Four alkaline batteries have been independently tested and found to provide 35,000 hand dries. Comes with AC adaptor. Designed to dispense jumbo roll towels max. 8" diameter.
• Installation: See notes on code 422 installation listed above.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

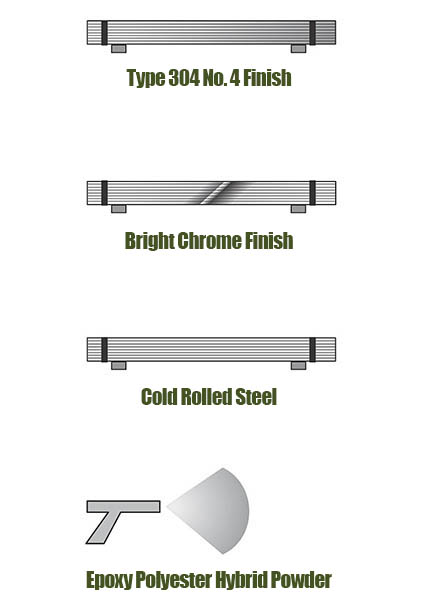

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
