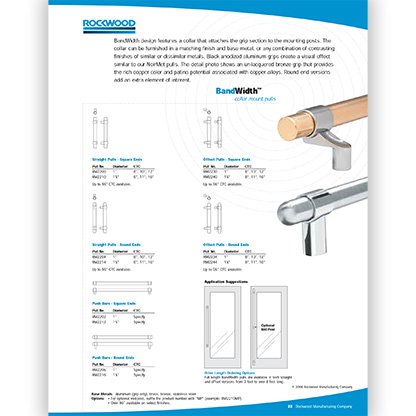

BandWidth Collection

The BandWidth Collection features a collar that attaches the grip section to the
mounting posts.

The collar can be furnished in a matching finish and base metal, or any combination
of contrasting finishes of similar or
dissimilar metals.

Black anodized aluminum grips create a visual effect similar to NoirMet pulls.

Round end versions add an extra element
of interest.

Designs
Specifications
Options
Finishes
Downloads

RM2200 - straight pull, square ends

1" diameter

8", 10", 12", up to 96" CTC

2-3/4" projection

RM2202 - push bar, square ends

1" diameter

Specify CTC

2-3/4" projection

RM2204 - straight pull, round ends

1" diameter

8", 10", 12", up to 96" CTC

2-3/4" projection

RM2205 - straight push-pull, square ends

1" diameter

Specify push/pull CTC

Specify door handing

RM2206 - push bar, round ends

1" diameter

Specify CTC

2-3/4" projection

RM2207 - straight push-pull, round ends

1" diameter

Specify push/pull CTC

Specify door handing

RM2210 - straight pull, square ends

1-1/4" diameter

8", 11", 16", up to 96" CTC

3" projection

RM2212 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM2214 - straight pull, round ends

1-1/4" diameter

8", 11", 16", up to 96" CTC

3" projection

RM2215 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

Specify door handing

RM2216 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM2217 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

Specify door handing

RM2230 - offset pull, square ends

1" diameter

8", 10", 12", up to 96" CTC

2-1/2" projection

RM2234 - offset pull, round ends

1" diameter

8", 10", 12", up to 96" CTC

2-1/2" projection

RM2235 - offset push-pull, square ends

1" diameter

Specify push/pull CTC

Specify door handing

RM2237 - offset push-pull, round ends

1" diameter

Specify Push/Pull CTC

Specify door handing

RM2240 - offset pull, square ends

1-1/4" diameter

8", 11", 16", up to 96" CTC

2-3/4" projection

RM2244 - offset pull, round ends

1-1/4" diameter

8", 10", 12", up to 96" CTC

2-3/4" projection

RM2245 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

2-1/2" projection

Specify door handing

RM2247 - offset push-pull, round ends

1-1/4" diameter

Specify Push/Pull CTC

3" projection

Specify door handing

BandWidth Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the BandWidth Collection are aluminum (grip only), stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

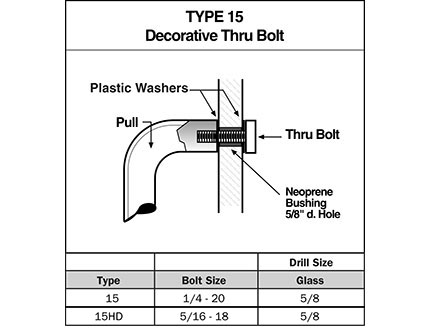

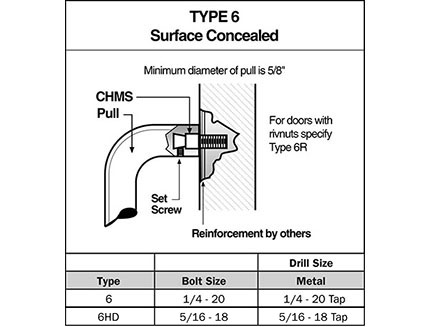

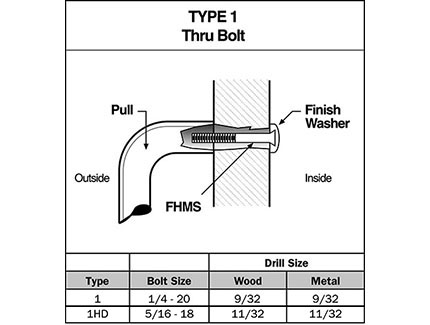

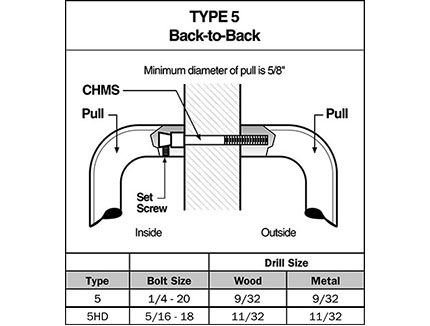

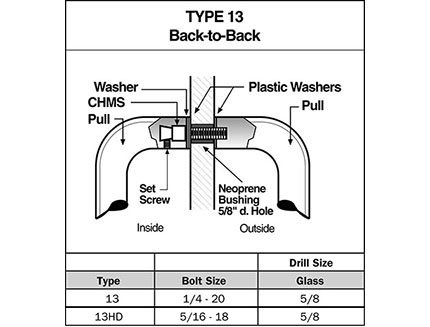

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

For optional mid-post, suffix the product number with “MP” (example: RM2210MP).
Recommended for maximum rigidity on pulls over 80".
Over 96" available on select finishes. Full length BandWidth pulls are available in both straight and offset versions, from 3 feet to over 8 feet long.

Application Suggestion

Straight Pull - Square Ends

RM2200 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: ___"

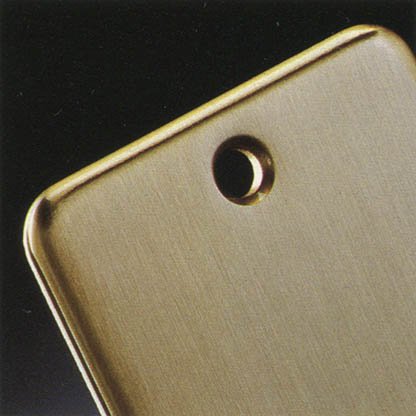

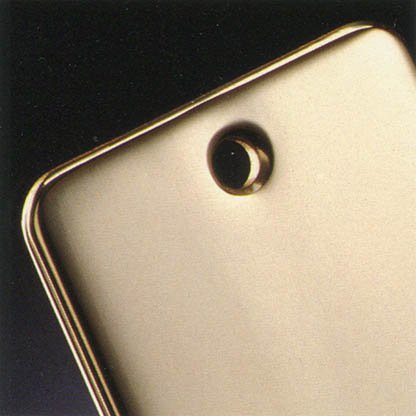

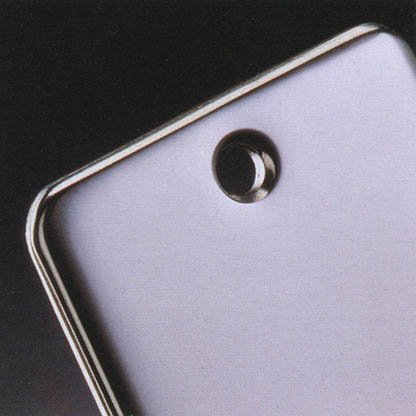

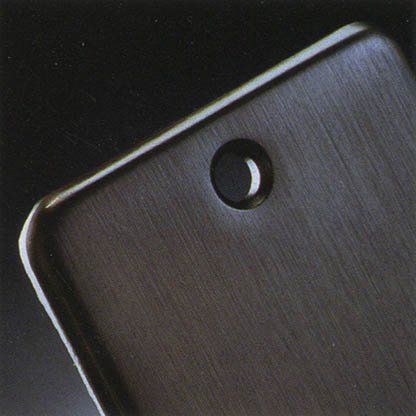

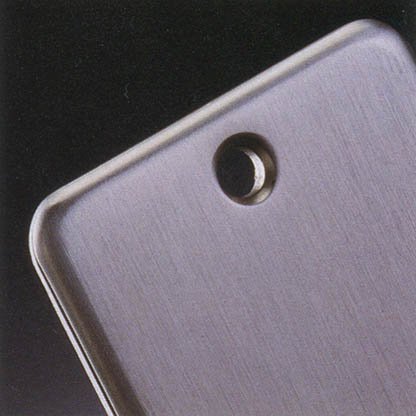

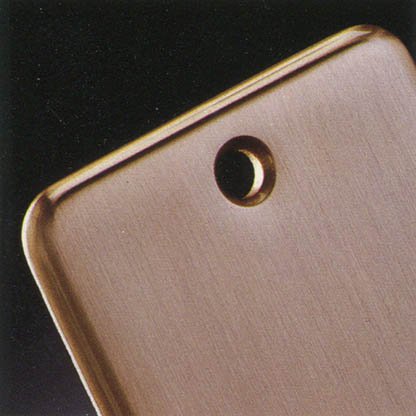

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2210 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM2204 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2214 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM2230 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2240 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM2234 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2244 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Square Ends

RM2205 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2215 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Round Ends

RM2207 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2217 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Square Ends

RM2235 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2245 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Round Ends

RM2237 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2247 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Door Handing: Specify
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM2202 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2212 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM2206 Specifications:

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2216 Specifications (HD Mounting):

Base Metal: Aluminum (grip only), Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
