Frames > Wood

Applied T-Stop

Baillargeon wood frames are available for fire rated openings up to 90 minutes and are specifically designed to enhance the beauty and performance of their doors by adding consistency across the entire opening. The design, layout and aesthetics ensure a high quality product and a complete, definitive and particularly no hassle solution.

Specifications
Series
Species
Finishes
Downloads

Evolution Series - Wood Veneer Face (20 to 90 Minute)

Fire rated: Versatility and security, all in one. For institutional or commercial projects, Baillargeon veneer jambs are at home with any style of decor and feature 20, 45, 60, or 90 minute fire ratings.

Non-fire-rated: The Evolution Series presents endless possibilities, embodying the very essence of design. With exceptional style and functionality, these non-fire-rated veneer jambs are ideal for commercial and institutional applications.

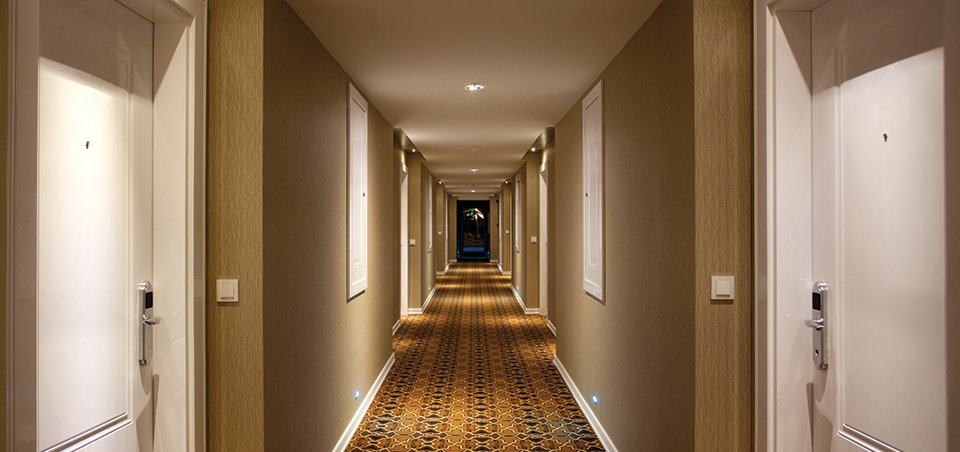

Applications: Office towers, condominiums, hotels, and institutional buildings.

Tradition Series - Solid Wood (20 minute)

Fire-rated: Designed to enhance and built to protect. With 20 minute fire ratings, Baillargeon solid wood jambs are ideal for top-of-the-line institutional, commercial and residential projects.

Non-fire-rated: Designed to accentuate, and produced to exacting standards, these solid wood non-fire-rated jambs will bring out the architectural beauty of luxury residential decor.

Applications: High-end office buildings, government buildings, hotels, and luxury residential projects.

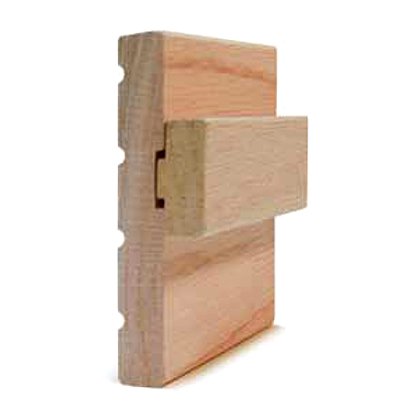

Applied T-Stop Frame: Product Overview

Fire ratings: 20, 45, 60, or 90 minute
Wood veneer face or solid wood
Standard 3/4" or 1" thickness; custom 1-1/8" or special order
1/32" edge banding (1/8" for 45-60-90 min)
3-5/8" minimum wall thickness (4-3/4" for fire rated)
Maximum openings, single door:
- 48" x 120" non-rated
- 48" x 108" fire rated
- see Downloads for 45-60-90-minute
Maximum openings, double doors:
- 96" x 120" non-rated
- 96" x 108" fire rated
- see Downloads for 45-60-90-minute
Sidelite or transom options
LEED credits
3 year warranty

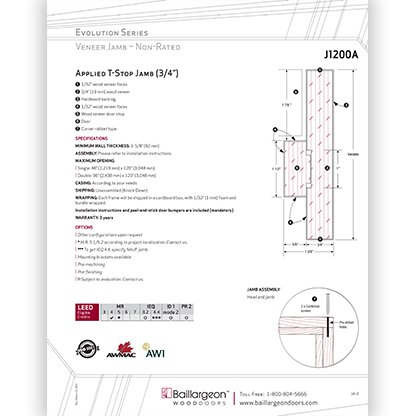

J1200A - non rated

Wood veneer face

3/4" thickness

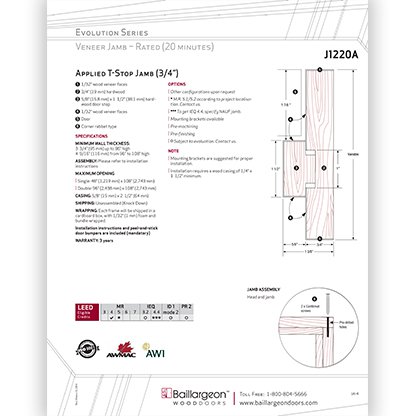

J1220A - 20 min

Wood veneer face

3/4" thickness

J1245A - 45 min

Wood veneer face

3/4" thickness

J1245B - 45 min

Wood veneer face

1" thickness

J1260A - 60 min

Wood veneer face

3/4" thickness

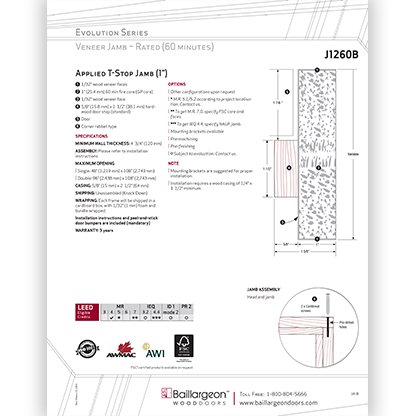

J1260B - 60 min

Wood veneer face

1" thickness

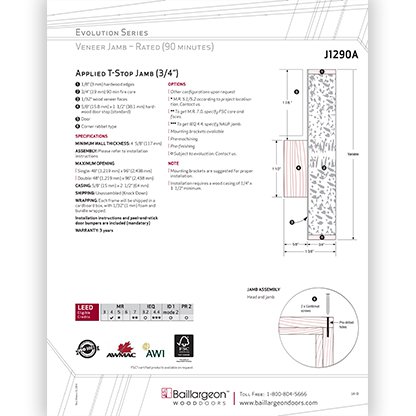

J1290A - 90 min

Wood veneer face

3/4" thickness

J1290B - 90 min

Wood veneer face

1" thickness

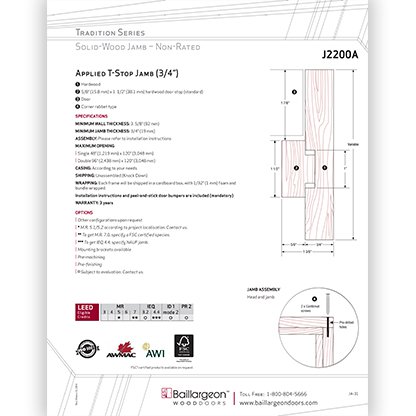

J2200A - non rated

Solid wood

3/4" thickness

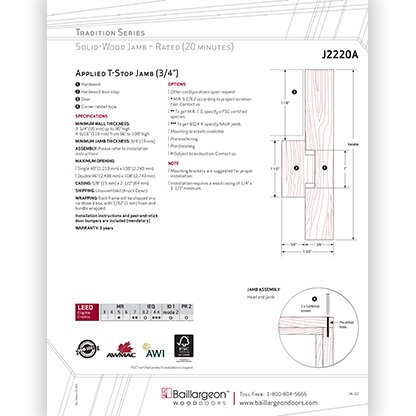

J2220A - 20 min

Solid wood

3/4" thickness

Cherry

Custom

Reclaimed hardwood, exotic Zebrawood, or the finest burlwood - all can be crafted into a beautiful door. All you need to do is know what you want and leave the rest to us. (Zebrawood shown)

Mahogany

Natural Birch

Red Oak

Walnut

White Ash

White Birch

White Maple

White Oak

Custom finishing available: hand staining or water-based finish; custom stain or blend of basic colors. Environmentally friendly process.

All finish options are shown on White Maple wood species for illustration purposes only. To ensure accuracy, please contact your representative for a physical sample. For additional wood species finish variations, view the Baillargeon Stain Finishes in Downloads.

Colours are not exactly as shown due to technical limitations and monitor differences.
