Doors > Door Glazing Options

Anemostat Standard

Smooth, Tight Miters
No Visible Weld Marks
Roll Formed for Consistent Features
Custom Designs and Modifications
Embossed Fire Rating Label on all Applicable Products
Fire Rated Products Comply with UBC 7.2 (97) and UL 10C for Positive Pressure
Fire Tested to Current Building Standards Worldwide
Ease of Installation

Specifications
Series
Options
Downloads

Anemostat Standard Metal Vision Frames

20 gauge cold rolled steel

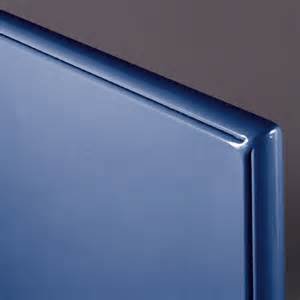

Grey primer; optional beige or bronze baked enamel
LoPro™: Lo-Profile Metal Vision Frame
LoPro™-IS: Lo-Profile Metal Vision Frame for Special Glass or Door Thickness
FGS-75: Thru-Bolted Metal Vision Frame
BFL-123: Self Attaching Beveled Metal Vision Frame

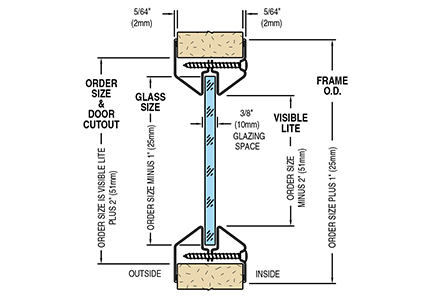

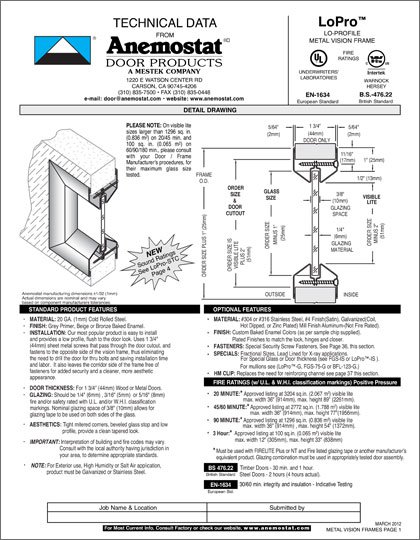

LoPro™: Lo-Profile Metal Vision Frame

MATERIAL: 20 GA (1mm) Cold Rolled Steel

FINISH: Grey Primer, Beige or Bronze Baked Enamel

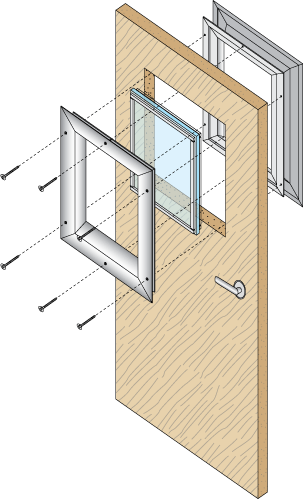

INSTALLATION: Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the vision frame

DOOR THICKNESS: 1-3/4" (44mm) Wood or Metal Doors

GLAZING: 1/4" (6mm), 3/16" (5mm) or 5/16" (8mm) Fire and Safety Rated Glass

AESTHETICS: Low profile and beveled glass stop provide a clean tapered look, with tight mitered corners

FIRE TESTED: with U.L. and W.H.I mark
• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite
*Must be used with FireLite Plus or NT and fire listed glazing tape, and be used in an appropriately tested door assembly
• Tested to: BS 476.22 and EN-1634

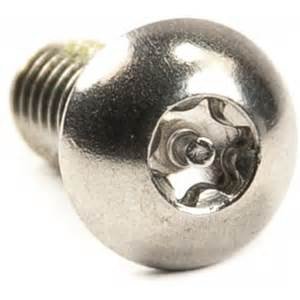

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws

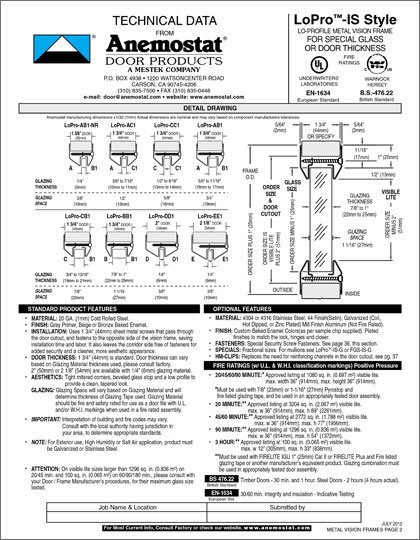

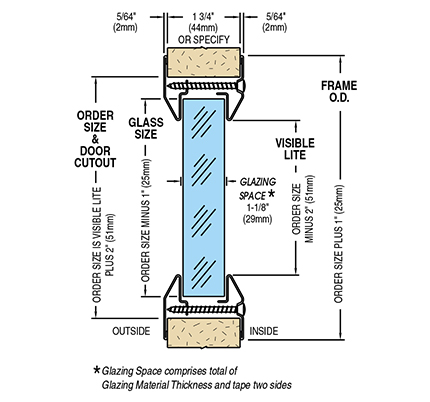

LoPro™-IS: Lo-Profile Metal Vision Frame
for Special Glass or Door Thickness

MATERIAL: 20 GA (1mm) Cold Rolled Steel

FINISH: Grey Primer, Beige or Bronze Baked Enamel

INSTALLATION: Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the vision frame

DOOR THICKNESS: Specify if other than 1-3/4" (44mm) standard

GLAZING: Must be specified when ordering

AESTHETICS: Low profile and beveled glass stop provide a clean tapered look, with tight mitered corners

FIRE TESTED: with U.L. and W.H.I mark
• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite
*Must be used with FireLite IGU, Cat II, and fire listed glazing tape, and be used in an appropriately tested door assembly
• 20/45/60/90 minute: up to 1080 sq. in. visible lite with 7/8" or 1-1/16" Pyrostop
• Tested to: BS 476.22 and EN-1634

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws.

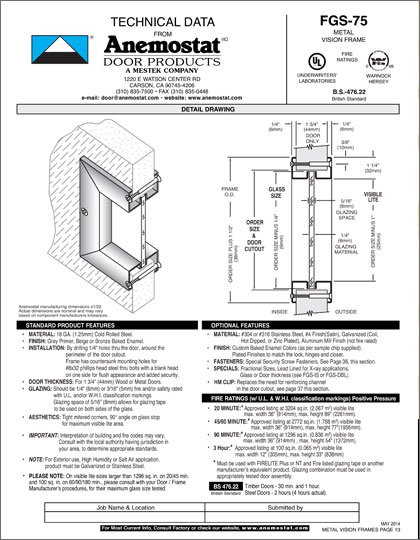

FGS-75: Thru-Bolted Metal Vision Frame

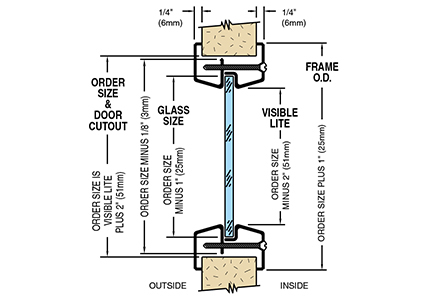

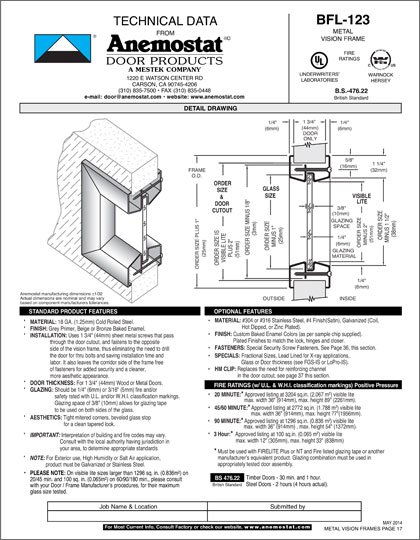

BFL-123: Self Attaching Beveled Metal Vision Frame

MATERIAL: 18 GA (1.2mm) Steel

FINISH: Grey Primer, Beige or Bronze Baked Enamel

DOOR THICKNESS: 1-3/4" (44mm) Wood or Metal Doors

GLAZING: 1/4" (6mm) or 3/16" (5mm) Fire and Safety Rated Glass

FIRE TESTED: with U.L. and W.H.I mark
• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite
*Must be used with FireLite Plus or NT and fire listed glazing tape, and be used in an appropriately tested door assembly

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws.
BFL-123 and FGS-75 available in G Series.

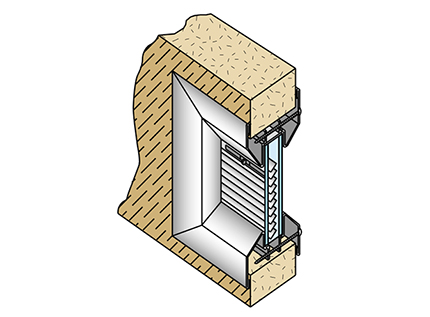

LoPro™-IS-MB for Hospitals & Conference Rooms

Metal Vision Frame with Internal White Mini-Blind
1” (25mm) Clear Tempered Insulated Glass Unit
Category II Safety Rated
NOT Fire Rated
Consult Penner for current sizes and availability

Anemostat - A Mestek Company

Anemostat is the largest manufacturer of metal vision frames and door louvers in North America. Although their roots come from over 75 years in the Air Distribution / HVAC business, Anemostat Door Products division has been the leader in product quality, engineering and development for over 40 years.
