Anemostat Specialty

Anemostat Specialty Metal Vision Frames

• 20 gauge cold rolled steel

• 5/8" x 5/8" steel tube material welded to the frame and all intersecting points of the mullion design, and ground smooth

• Grey primer; optional beige or bronze baked enamel

• 13 standard grille designs, or factory custom (consult Penner)

• LoPro™-G: Lo-Profile Metal Vision Frame with French Door Grilles

• LoPro™-IS-G: Lo-Profile Metal Vision Frame with French Door Grilles for use with Special Glass or Door Thicknesses

• FM-G: Framed Mullion Grille for Sidelites and Borrowed Lites

• 5 additional models available - consult Penner (lead lined, fire rated, post office options)

LoPro™-G: Lo-Profile Metal Vision Frame with French Door Grilles

LoPro™-IS-G: Lo-Profile Metal Vision Frame with French Door Grilles
for use with Special Glass or Door Thicknesses

MATERIAL: 20 GA (1mm) Cold Rolled Steel. Mullions are 5/8" x 5/8" (16mm x 16mm) steel tube material welded to the frame and all intersecting points of the mullion design, and ground smooth.

FINISH: Grey Primer, Beige or Bronze Baked Enamel

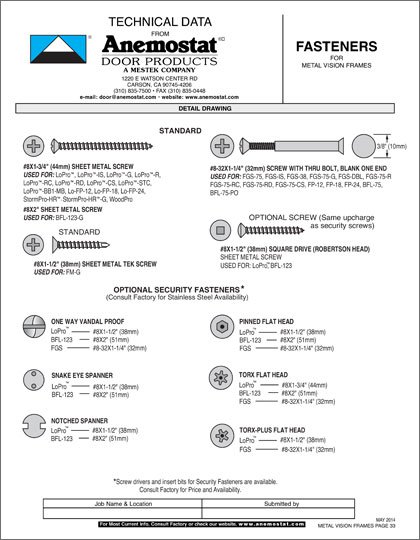

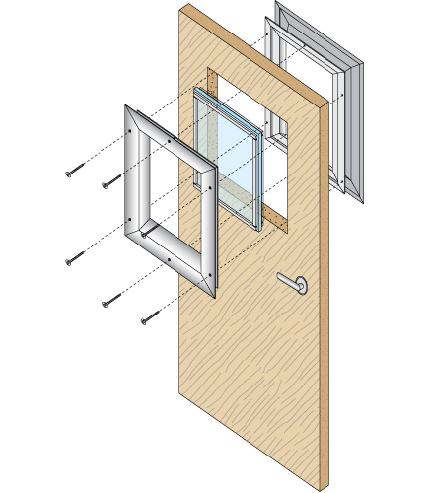

INSTALLATION: Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the vision frame.

DOOR THICKNESS: 1-3/4" (44mm) Wood or Metal Doors. Must specify Door Thickness for LoPro™-IS-G.

GLAZING: 1/4" (6mm), 3/16" (5mm) or 5/16" (8mm) Fire and Safety Rated Glass. Must specify Glazing Thickness for LoPro™-IS-G.

AESTHETICS: Low profile and beveled glass stop provide a clean tapered look, with tight mitered corners

FIRE TESTED: with U.L. and W.H.I mark
• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite
   *Must be used with FireLite Plus or NT and fire listed glazing tape, and be used in an appropriately tested door assembly
• Tested to: BS 476.22 and EN-1634

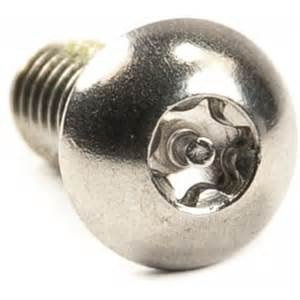

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws

Anemostat - A Mestek Company

Anemostat is the largest manufacturer of metal vision frames and door louvers in North America. Although their roots come from over 75 years in the Air Distribution / HVAC business, Anemostat Door Products division has been the leader in product quality, engineering and development for over 40 years.
