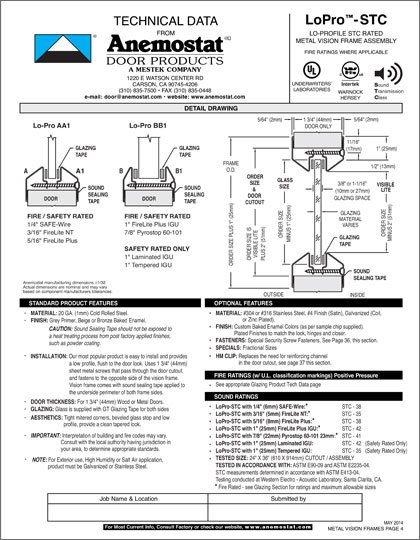

LoPro™-STC Specifications

A Vision Lite System for Fire, Safety & Sound:

For use with sound-rated wood or metal doors (1-3/4" thickness)
LoPro™-STC: Lo-Profile STC Rated Metal Vision Frame Assembly
Fire/safety rated glazing, up to 1-inch thickness; laminated or tempered
Fire rating up to 180 minute
STC rating up to 42

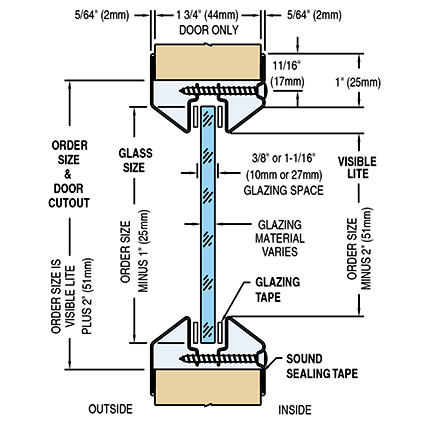

Lo-Profile STC Rated Metal Vision Frame Assembly

MATERIAL: 20 GA (1mm) Cold Rolled Steel

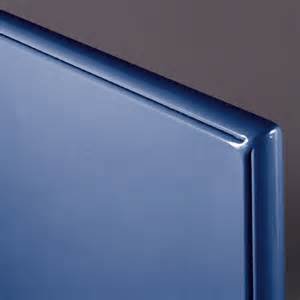

FINISH: Grey Primer, Beige or Bronze Baked Enamel

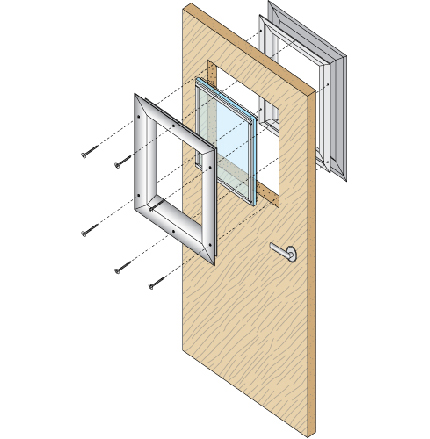

INSTALLATION: Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the vision frame
DOOR THICKNESS: 1-3/4" (44mm) Wood or Metal Doors
GLAZING: Glass is supplied with GT Glazing Tape for both sides
AESTHETICS: Low profile and beveled glass stop provide a clean tapered look, with tight mitered corners
FIRE TESTED: See appropriate Glazing Product
TESTED SIZE: 24" X 36" CUTOUT / ASSEMBLY
TESTED IN ACCORDANCE WITH: ASTM E90-09 and ASTM E2235-04.
STC measurements determined in accordance with ASTM E413-04. Testing conducted at Western Electro - Acoustic Laboratory, Santa Clarita, CA.

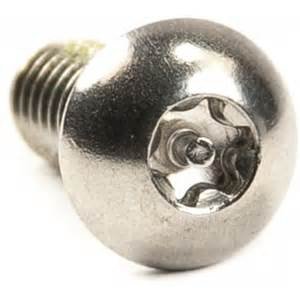

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws

Sound Ratings

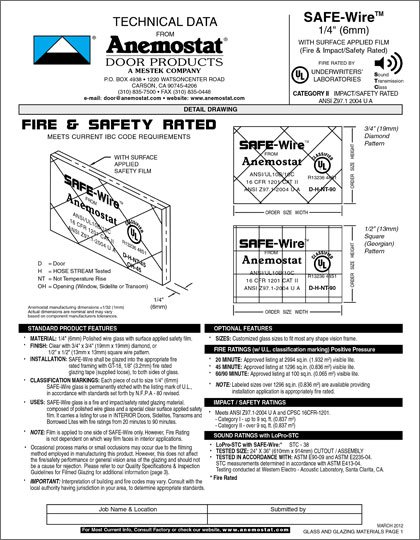

1/4" SAFE-Wire:* STC - 38

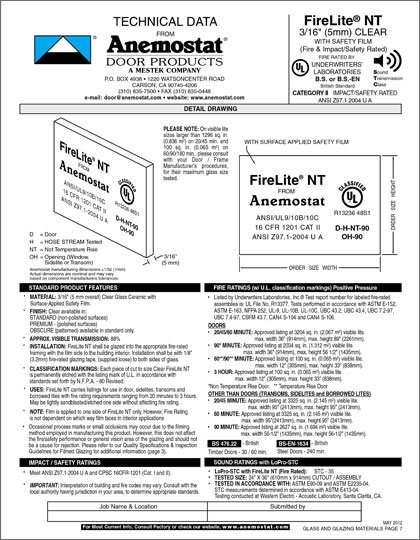

3/16"FireLite NT:* STC - 35

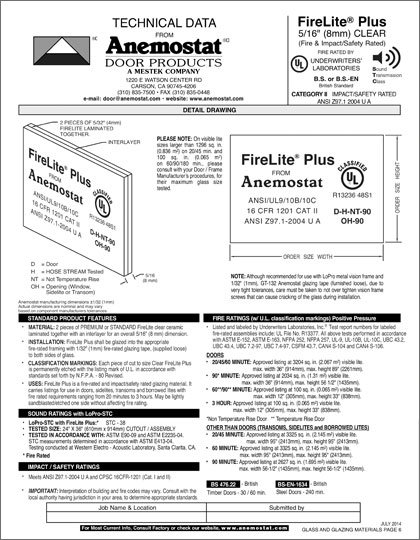

5/16" FireLite Plus:* STC - 38

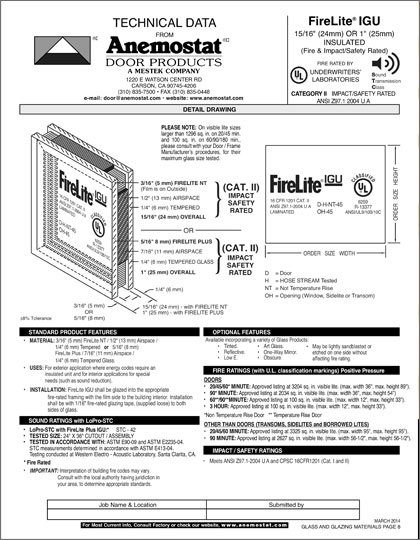

1" FireLite Plus IGU:* STC - 42

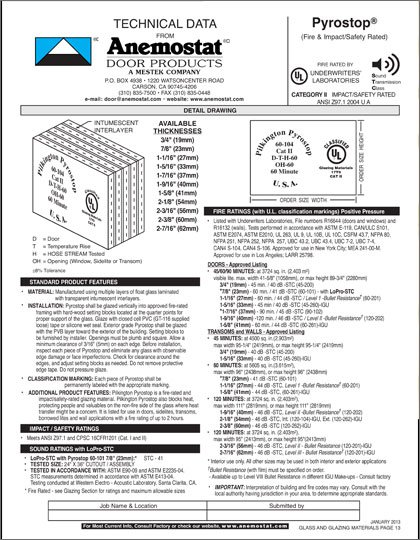

7/8" Pyrostop 60-101 23mm:* STC - 41

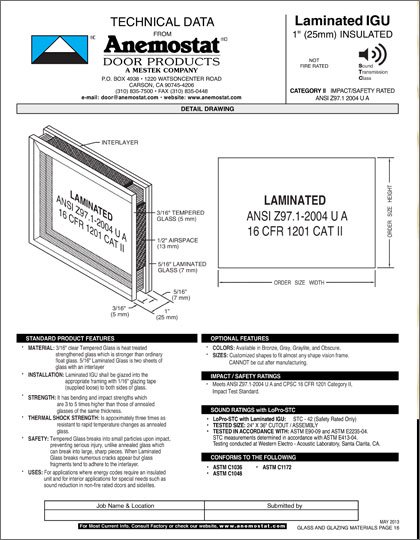

1" Laminated IGU: (Safety Rated Only) STC - 42

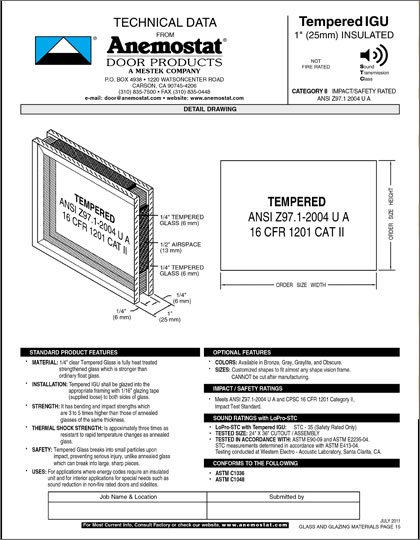

1" Tempered IGU:(Safety Rated Only) STC - 35

* Fire Rated - see Glazing Section for ratings and maximum allowable sizes
