Anemostat Security

Smooth, Tight Miters
No Visible Weld Marks
Roll Formed for Consistent Features
Custom Designs and Modifications
Embossed Fire Rating Label on all Applicable Products
Fire Rated Products Comply with UBC 7.2 (97) and UL 10C for Positive Pressure
Fire Tested to Current Building Standards Worldwide
Ease of Installation

Specifications
Series
Options
Downloads

Anemostat Security Metal Vision Frames

5 Unique Series Available:

BR-7: Bullet and Impact Resistant Metal Vision Frame
SL-IS: Metal Vision Frame with Security Grille for Standard / Special Door or Glass Thickness
LoPro™-SC-GR: Metal Vision Frame with Security Grille and Operating Security Cove
SG-12-LCP: Security Metal Vision Frame with Locking Cuff Port / Food Pass
SSD: Security Sliding Door for Selective Vision into High Security Areas

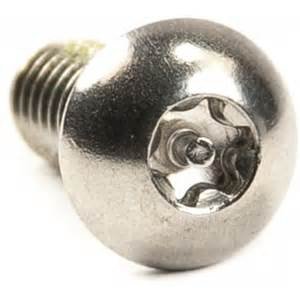

6 types of optional security screws available
15 additional models available - consult Penner

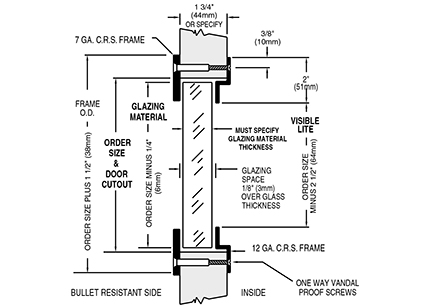

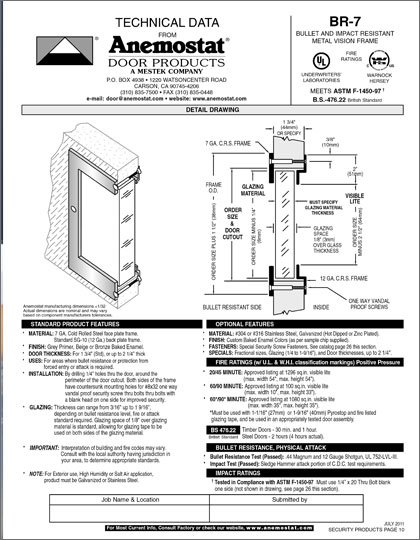

BR-7: Bullet and Impact Resistant Metal Vision Frame

MATERIAL: Face Plate: 7 GA (4.5mm) C.R.S., Back Frame: 12 GA (2.5mm) C.R.S.

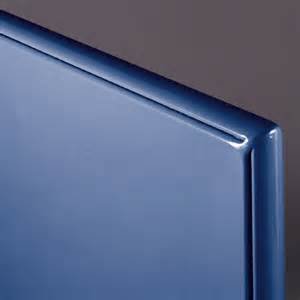

FINISH: Grey Primer, Beige or Bronze Baked Enamel
INSTALLATION: #8-32 Thru-Bolts
DOOR THICKNESS: Specify if other than 1-3/4" (44mm) standard
GLAZING: up to 1-9/16" (40mm) based on bullet/impact resistance and/or fire rating
BULLET RESISTANCE: .44 magnum and 12 gauge shotgun
FIRE TESTED: with U.L. and W.H.I mark
20/45/60* minute: Approved listing at 1296 sq. in. visible lite; 60*/90* minute: Approved listing at 1080 sq. in. visible lite
*Must be used with FireLite Plus or NT or Pyrostop for listing on sizes over 100 sq. in.
IMPACTED TESTED: In compliance with ASTM F-1450-97 (must specify 1/4" x 20 thru-bolt)

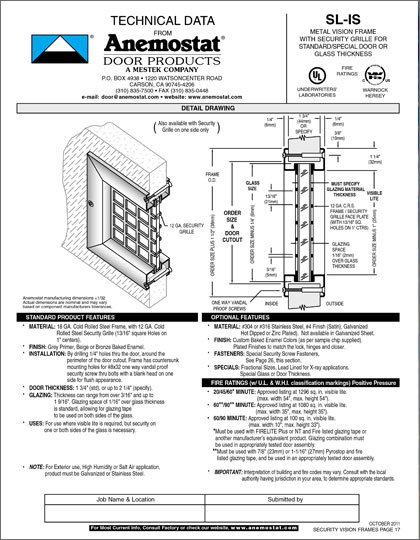

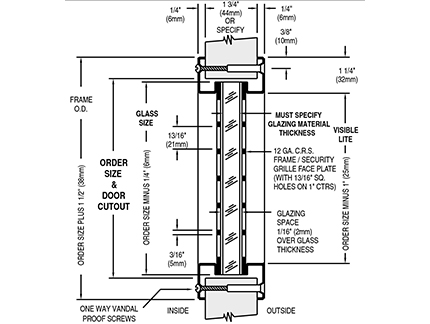

SL-IS: Metal Vision Frame with Security Grille for Standard / Special Door or Glass Thickness

MATERIAL: Frame: 18 GA (1.2mm) Cold Rolled Steel; Security Grille: 12 GA (2.5mm) Cold Rolled Steel two sides
FINISH: Grey Primer, Beige or Bronze Baked Enamel
INSTALLATION: Thru-Bolts
DOOR THICKNESS: Specify if other than 1-3/4" (44mm) standard
GLAZING: 3/16" (5mm) up to 1-9/16" (40mm)
FIRE TESTED: with U.L. and W.H.I mark
20/45/60* minute: Approved listing at 1296 sq. in. visible lite; 60*/90* minute: Approved listing at 1080 sq. in. visible lite
*Must be used with FireLite Plus or NT or Pyrostop for listing on sizes over 100 sq. in.

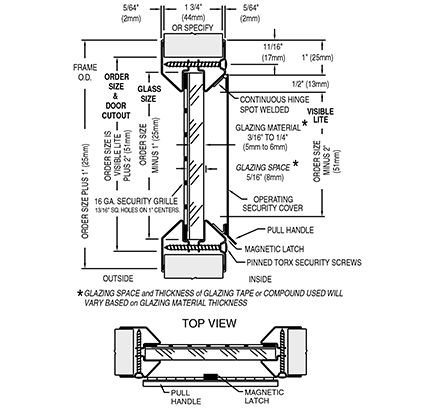

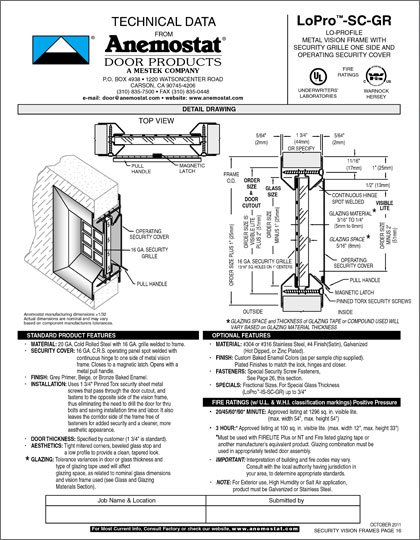

LoPro™-SC-GR: Metal Vision Frame with Security Grille and Operating Security Cover

MATERIAL: Frame: 20 GA (1mm) Cold Rolled Steel; Security Grille: 16 GA (1.5mm) Cold Rolled Steel one side
FINISH: Grey Primer, Beige or Bronze Baked Enamel
INSTALLATION: Self Attaching Style
DOOR THICKNESS: Specify if other than 1-3/4" (44mm) standard
GLAZING: 3/16" (5mm) to 1/4" (6mm) thickness based on 1-3/4" (44mm) Door Thickness
FIRE TESTED: with U.L. and W.H.I mark
20/45/60*/90* minute: Approved listing at 1296 sq. in. visible lite; 3 hour: Approved listing at 100 sq. in. visible lite with FireLite NT
*Must be used with FireLite NT for sizes over 100 sq. in. visible lite

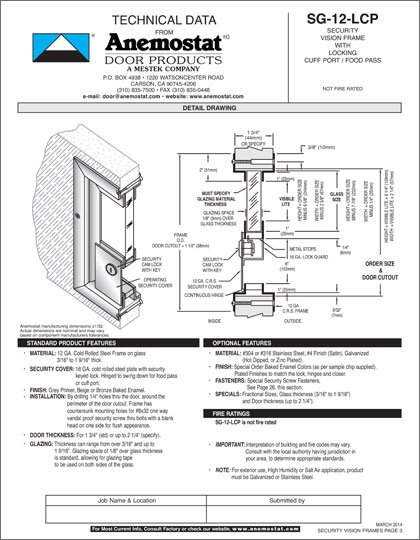

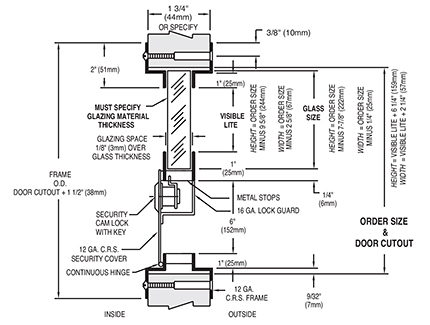

SG-12-LCP: Security Metal Vision Frame with Locking Cuff Port / Food Pass

MATERIAL: Frame: 12 GA (2.5mm) Cold Rolled Steel; Security Cover: 16 GA (1.5mm) Cold Rolled Steel, hinged with security keyed cam lock
FINISH: Grey Primer, Beige or Bronze Baked Enamel
INSTALLATION: Thru-Bolts
DOOR THICKNESS: Specify if other than 1-3/4" (44mm) standard
GLAZING: 3/16" (5mm) up to 1-9/16" (40mm)
FIRE TESTED: NOT fire rated

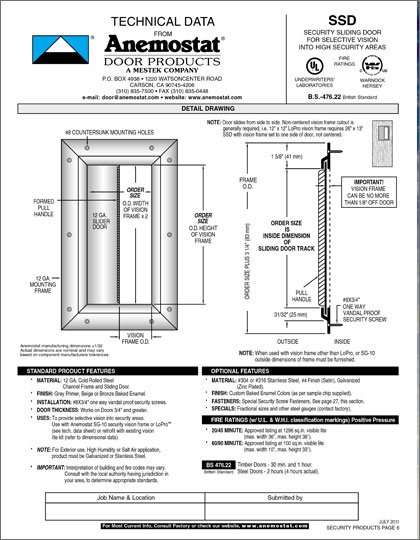

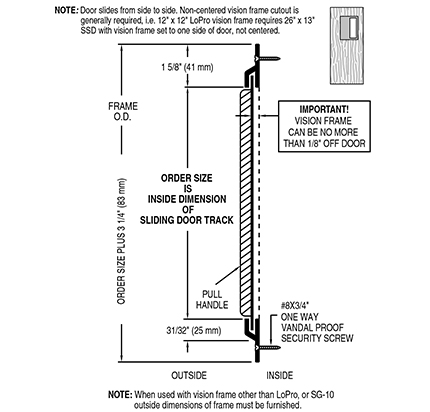

SSD: Security Sliding Door for Selective Vision into High Security Areas

MATERIAL: 12 GA (2.5mm) Cold Rolled Steel, channel frame and sliding door
FINISH: Grey Primer, Beige or Bronze Baked Enamel
INSTALLATION: Screws directly into door over pre-existing vision lite
DOOR THICKNESS: 3/4" (19mm) and greater
GLAZING: Fits over vision lite frame and glazing
FIRE TESTED: with U.L. and W.H.I mark
20/45/60/90 minute: Approved listing
FOR USE WITH: SG-10, SG-10-SP, SG-12-SP or LoPro.
Can be retrofitted with pre-existing vision frame (no more than 1/8" (3mm) off the face of the door).

OPTIONAL FEATURES – ALL MODELS: Galvanized, Stainless Steel, Custom Paint Colors, Security Screws

Anemostat - A Mestek Company

Anemostat is the largest manufacturer of metal vision frames and door louvers in North America. Although their roots come from over 75 years in the Air Distribution / HVAC business, Anemostat Door Products division has been the leader in product quality, engineering and development for over 40 years.
