Acoustic Steel
AMBICO acoustic steel doors and frames combine outstanding sound transmission loss with the appearance of standard hollow metal products.
Doors are provided complete with acoustic steel frames, perimeter and bottom seals.
AMBICO doors and frames add striking architectural and engineered features to buildings in the commercial, institutional and industrial sectors.
- Specifications
- Downloads
ACOUSTIC STEEL DOORS
- 1-3/4" thick doors from STC 33 to STC 53

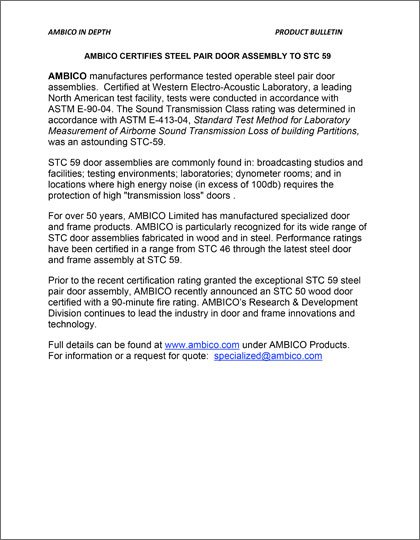

- Doors up to 2-3/4" in overall thickness provide a rating of STC 59
- STC-53 to STC-59 door/frame units supplied with cam-lift type hinges
- Soundproof steel doors are available with acoustic glazing that is factory pre-installed
- Fire rated units available – may be supplied in singles or in pairs
- 5 year warranty
- Engineered door types also available:
- Acoustic Wood Doors
- Blast Doors / Blast Resistant Doors
- Bullet Resistant Doors / Sliding Doors
- Detention Doors
- Lead Lined Doors
- Marine Doors
- Oversized Doors
- Radio Frequency Doors
- Tornado Resistant Doors
Stock acoustic doors for single or paired openings fit specifications as follows:
Sizes: Stock door size is 3'0" x 7'0" x 1-3/4"; STC Rated 33 through 53.
Material: Galvanized Steel back and front panels.
Finishing: Rust inhibitive zinc chromate.
Core: All voids filled with Sound Deadener.
Hinge Preparation: Door is templated for 4.5" x .180" mortised hinges, and reinforced for surface closer and surface bolts.
Lock Preparation: Available lock preparations are Cylindrical Lock, Mortise Lock or Exit Device.
Fire Rating: Up to 90 minutes.
Warranty: Manufacturer's limited warranty – five (5) years from date of supply, covering material and workmanship.

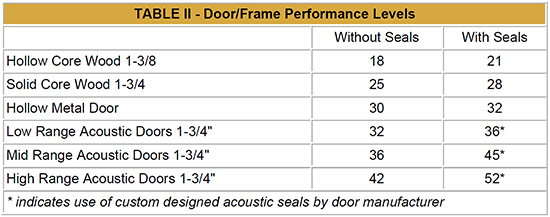

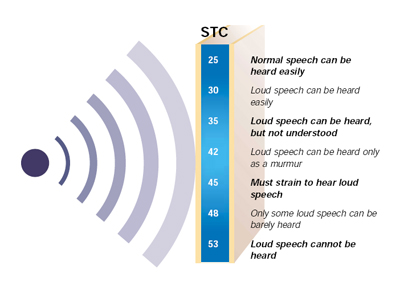

STC Performance Levels in Acoustic Doors/Frames
Frequently Asked Questions

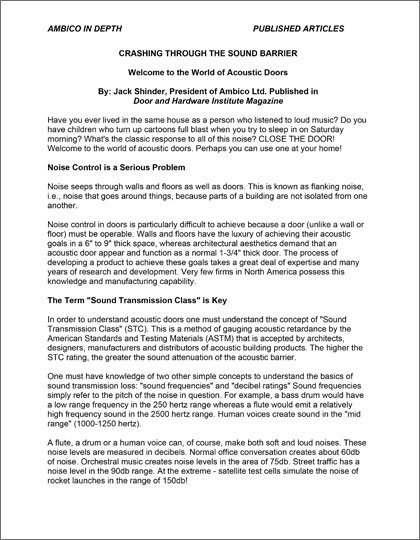

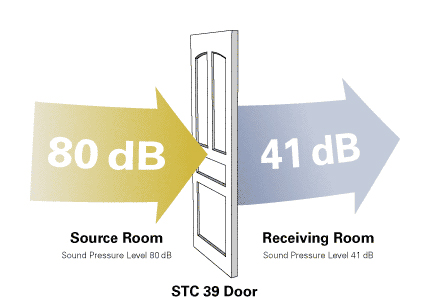

What is an STC rating? STC stands for "sound transmission class".
It represents a method of measuring sound transmission loss through a barrier, ie. a door or a wall. The higher the STC rating the better the sound deadening property of the door. Ambico provides 1-3/4" thick doors from STC 33 to STC 53. Doors up to 6" in overall thickness provide a rating of
STC 56. Let us help you select an acoustic product that will meet your
project requirements.
Are acoustic doors supplied with seals and door hardware? Perimeter seals, bottom seals and thresholds are always supplied, as they are integral to the sound deadening properties of the door/frame unit. Heavyweight butt hinges and latching devices are available through Penner Doors & Hardware.

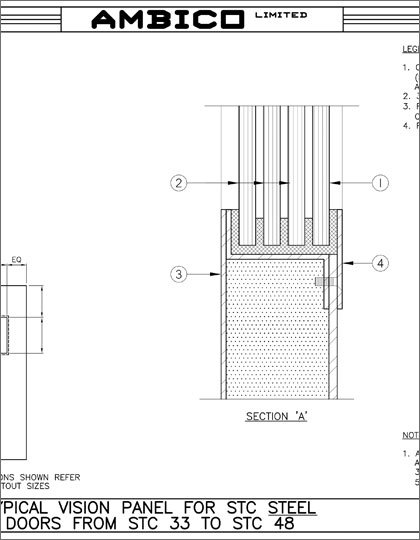

Can acoustic doors be provided with glass lites? Ambico has tested glazed acoustic doors that have achieved STC 52. Glazing material must be factory pre-installed.

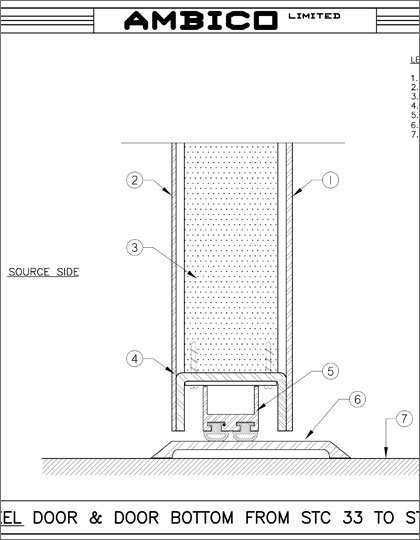

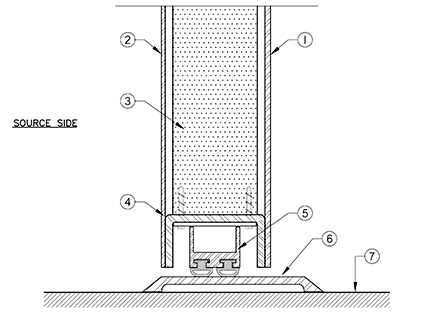

Acoustic Steel Unit Specifications
1. Steel back skin
2. Steel front skin
3. All voids filled with sound deadener
4. Bottom channel
5. Acoustic mortised drop door bottom
6. 1/4" high flat acoustic threshold
7. Finished floor
STC 33-39: Typical Acoustic Steel Door & Bottom
