Acoustic Wood

ACOUSTIC WOOD DOORS

• 1-3/4" thick from STC 33 to STC 50; greater thicknesses from STC 51 to STC 54
• Custom veneers available in a variety of paint or stain options
• Units supplied with all acoustic perimeter seals, door bottoms, and thresholds
• Designed to accept heavyweight builders hardware
• Fire rated units available, up to 90-minute
• 5 year warranty
• Engineered door types also available:
  - Acoustic Steel Doors
  - Blast Doors / Blast Resistant Doors
  - Bullet Resistant Doors / Sliding Doors
  - Detention Doors
  - Lead Lined Doors
  - Marine Doors
  - Oversized Doors
  - Radio Frequency Doors
  - Tornado Resistant Doors

Sizes: Stock door size is 3'0" x 7'0" x 1-3/4".

Stock Veneers: Plain sliced paint- or stain-grade Red Oak and White Birch veneer available for stock wood doors.

Finishing: The entire range of wood veneers are available. Doors are supplied with matching edges and can be provided with a pre-finished stain or clear coat.

Frame Finishing: Rust inhibitive zinc chromate on frames.

Hinge Preparation: Door is templated for 4.5" x .180" mortised hinges, and reinforced for surface closer and surface bolts.

Lock Preparation: Available lock preparations are Cylindrical Lock, Mortise Lock or Exit Device.

Features:

• Stock acoustic soundproof wood doors and steel frames are ready for immediate shipment.
• Soundproof doors are available 1-3/4" thick from STC 33 to STC 50.
• Soundproof doors are available at greater thicknesses from STC 51 to STC 54.
• Face veneers are available in a variety of paint grade or stain grade options including birch, oak, walnut, maple and cherry.
• Door edges match the veneer of the door face.
• Testing of acoustic door/frame units by independent laboratories complies with the most up-to-date standards on the continent.
• Fire rated doors are available up to 90 minutes
• Units have been designed to accept readily available heavyweight builders hardware.
• Soundproof doors are available with acoustic glazing that is factory pre-installed.

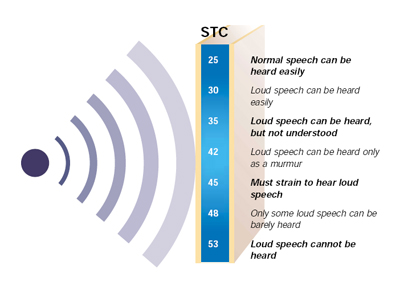

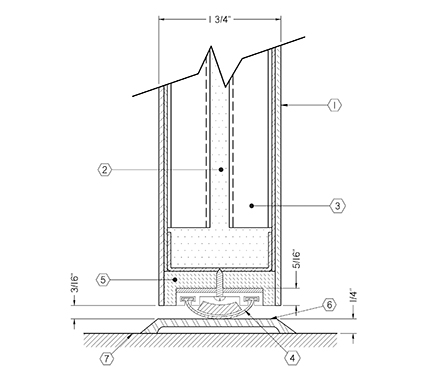

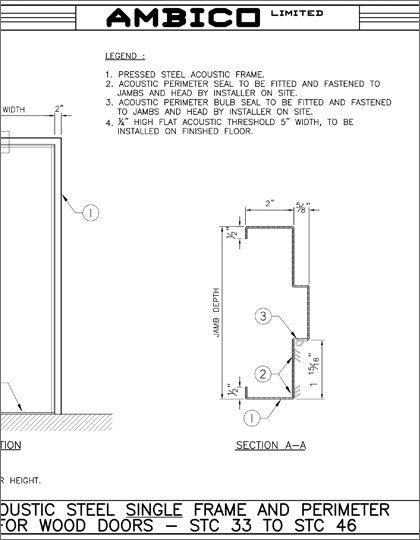

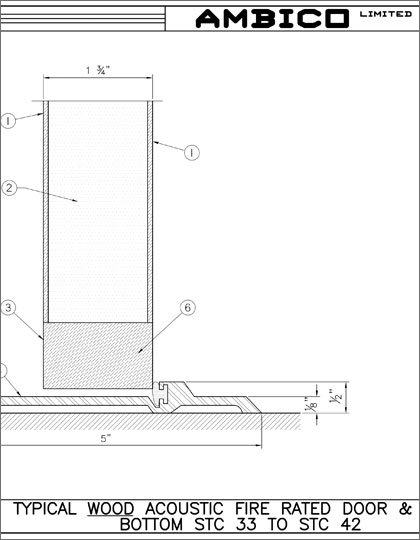

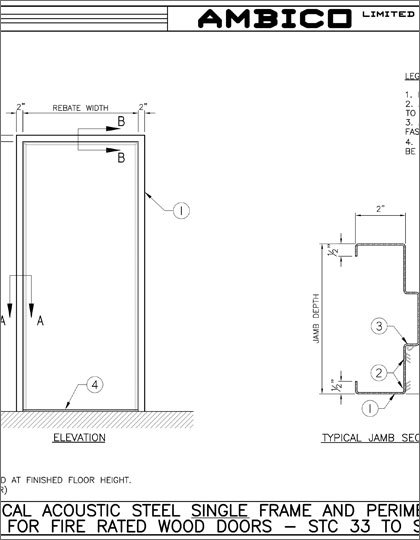

STC Performance Levels in Acoustic Doors/Frames

Frequently Asked Questions

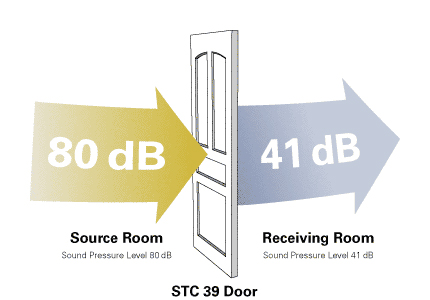

What is an STC rating?  STC stands for "sound transmission class".
It represents a method of measuring sound transmission loss through a barrier, ie. a door or a wall. The higher the STC rating the better the sound deadening property of the door. Ambico provides 1-3/4" thick doors from STC 33 to STC 53. Doors up to 6" in overall thickness provide a rating of
STC 56. Let us help you select an acoustic product that will meet your
project requirements.

Are acoustic doors supplied with seals and door hardware?  Perimeter seals, bottom seals and thresholds are always supplied, as they are integral to the sound deadening properties of the door/frame unit. Heavyweight butt hinges and latching devices are available through Penner Doors & Hardware.

Can acoustic doors be provided with glass lites?  Ambico has tested glazed acoustic doors that have achieved STC 52. Glazing material must be factory pre-installed.

What type of wood finishing is available?  The entire range of wood veneers are available. Doors are supplied with matching edges. As well, doors can be provided with a pre-finished stain or clear coat per project specifications.
