LS Series

Daybar’s LS Series of doors combine quality features in a competitive package.

Built with pride in Canada, these pre-machined doors are galvannealed steel with standard honeycomb core—ideally suited for commercial and industrial applications. LS Series Doors are manufactured to industry standards as specified by the Canadian Steel Door Manufacturer's Association (CSDMA).

Specifications
Cores
Prep
Glass
Options
Downloads

LS Series Door Specifications

Sizes:Widths: 2’0” to 4’0”, in 2-inch increments as standard. Heights: 6’8” to 8’0”, in 2-inch increments as standard. Maximum sizes for double doors: 4'0" x 8'0". Custom, non-standard and oversize also available.

Material: 20 gauge Galvanneal Steel; 18 or 16 gauge.

Standard Core: 1" honeycomb; STC 32; R-value 2.5

Insulated Core Options:Rigid polystyrene: STC 34; R-value 6.6. Polyurethane: STC 34; R-value 11.1

Temperature Rise Rated Core: Patented, composite fire door core with excellent surface adhesion and mechanical strength. STC 35; R-value: 3.25

Closer Reinforcement: 14 gauge closer reinforcement, fitted to 16 gauge inverted top channel.

Hinge Preparation: 1-1/2 pairs, 4-1/2” templated hinges.

Hinge Reinforcement: 7 gauge hinge reinforcement; standard weight to heavy weight conversion.

Lock Preparation: ANSI A115.2 #161 lock reinforcement; 14 gauge prepared for 2-3/4” backset.

Fabrication: Lock seam and beveled edge; mechanically interlocking seams on door edges only.

Glazing: WHI listed door glazing kit available.

Fire Rating: Maximum 3 hours. Glazing limitations on labelled doors.

Warranty: 1 year limited

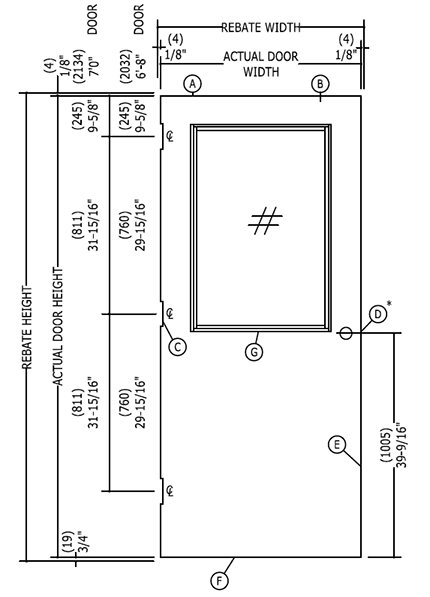

LS Series Door Components

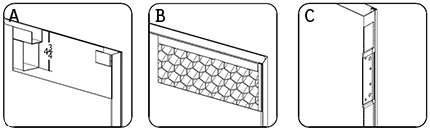

A. 14 gauge closer reinforcement fitted to 16 gauge inverted top channel.

B. 1" cell diameter, standard honeycomb core – 20 gauge; 3/4" cell diameter, standard honeycomb core – 18 or 16 gauge.

C. 7 gauge hinge reinforcement for standard weight 4-1/2" high template butt hinges.

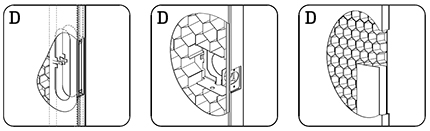

D. ANSI A115.1 #86 - 14 gauge reinforcement with lock guide D & T for #12-24 screw.

D. ANSI A115.2 #161 - 14 gauge reinforcement, 2-3/4" backset D & T for #8-32 screw.

D. 14 gauge rim panic reinforcement (includes reinforcement for surface vertical rod or surface bolts).

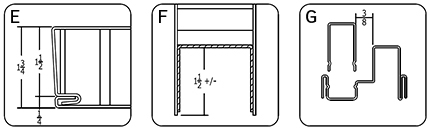

E. 1/8-inch in 2" bevelled edges with lock seam design.

F. 16 gauge inverted bottom channel.

G. Optional WHI listed door glazing kit (snap-in bead); glass not included.

See Downloads tab for additional information.

What is Daybar Quality?

Daybar quality is built on 50 years of manufacturing experience, broad fire and physical endurance certification capabilities and the best warranty program available in the industry.

Honeycomb (Standard)

R-value 2.5

STC rating 32

Rigid Polystyrene

R-value 6.6

STC rating 34

Polyurethane

R-value 11.1

STC rating 34

Steel Stiffened

Stiffened, laminated

R-value 1.2

STC rating 24

Temperature Rise

Inorganic based composite; woven fiberglass both sides

R-value: 3.25

STC 35

161 Door

Cylinder cutout with barrel support

Closer Reinforced

14 ga closer reinforcement

Closer reinforcing top & bottom on blank doors, and 6/8 with 161 locks

Mortise Lock

Includes lock centering guide

Rim Panic

Panic reinforcing channel

Surface applied, surface bolt, or vertical rod

Clear Tempered

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Fire Rated

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Specify 45-90-180 minute

Georgian Wire

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Glazing configurations

- Vision lite
- Narrow lite
- Long narrow lite
- Double narrow lite
- Half glass
- Full glass
- Full glass with rail
- Multiple lite

*Glazing limitations on labelled doors
