Taymor 600 Series
From the heaviest duty commercial fire doors down to light duty residential doors, count on Taymor Door Closer products for code compliance, longevity, and construction project value.

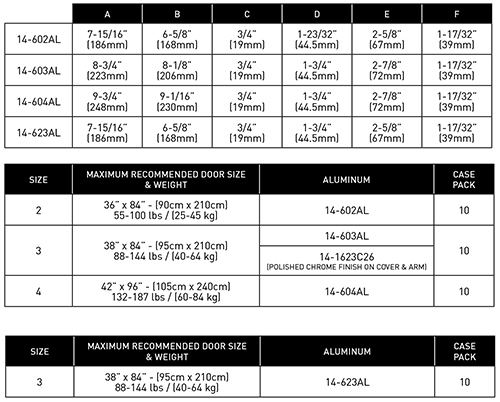

- Specifications

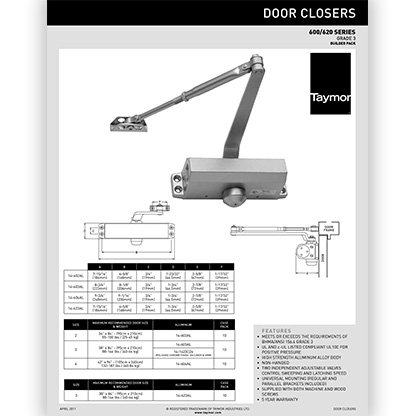

- Downloads
- Ultra heavy-duty rack & pinion mechanism
- Ultra heavy-duty cast iron body
- Power adjustable sizes 1-6
- Easy-to-use adjustment instructions
- Full cUL & UL positive pressure compliance
- 5 Year Guarantee
- Meets or Exceeds Requirements of Bmha/Ansi 156.4 - Grade 2
- Dual Valve Adjustable (Closing and Latching Speed)
- High Strength Pressure Cast Aluminum Housing
- Reversible for Both Right and Left Handed Doors
- Full Rack and Pinion Mechanism
- Narrow Style Design, Ideal For Use On Modern Collection Aluminum And Glass Doors, Fire Doors, Standard Wood Doors
- Versatile And Easy Installations
- Heat Treated High Tensile One Piece Piston and Spindle
- High Lubricity and Low Pour Point High Quality Hydraulic Fluid
- Leak Proof "O" Rings Oil Seal
- Universal Mounting (Regular and Parallel Brackets Included)
- Available in Aluminum Finish

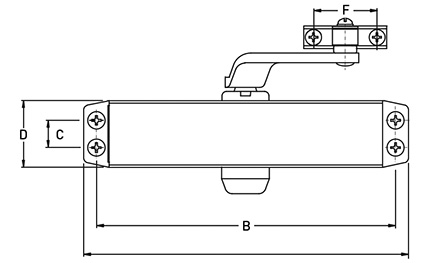

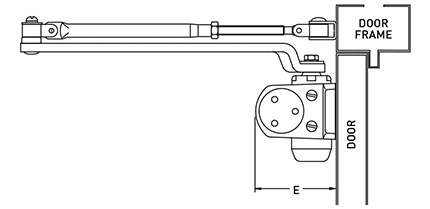

600 Series Door Closer
