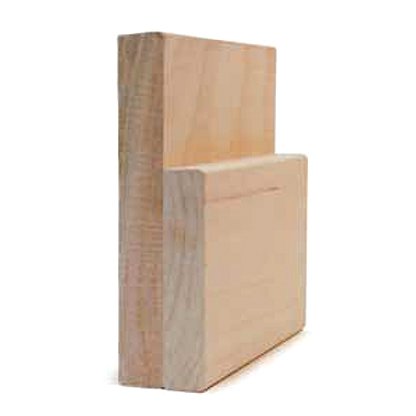

Single Rabbet

Baillargeon wood frames are of superior precision and allow for custom design that facilitates your particular site requirements for ease of installation. The flexibility of frame design allows ease of adaptability to the specific conditions of your construction and renovation projects.

Specifications
Veneers
Series
Finishes
Downloads

Evolution Series - Wood Veneer Face (20 to 90 Minute)

Fire rated: Versatility and security, all in one. For institutional or commercial projects, Baillargeon veneer jambs are at home with any style of decor and feature 20, 45, 60, or 90 minute fire ratings.

Non-fire-rated: The Evolution Series presents endless possibilities, embodying the very essence of design. With exceptional style and functionality, these non-fire-rated veneer jambs are ideal for commercial and institutional applications.

Applications: Office towers, condominiums, hotels, and institutional buildings.

Tradition Series - Solid Wood (20 minute)

Fire-rated: Designed to enhance and built to protect. With 20 minute fire ratings, Baillargeon solid wood jambs are ideal for top-of-the-line institutional, commercial and residential projects.

Non-fire-rated: Designed to accentuate, and produced to exacting standards, these solid wood non-fire-rated jambs will bring out the architectural beauty of luxury residential decor.

Applications: High-end office buildings, government buildings, hotels, and luxury residential projects.

Single Rabbet Frame: Product Overview

Fire ratings: 20, 45, 60, or 90 minute
Wood veneer face or solid wood
Standard 3/4" or 1" thickness; custom 1-1/8" or special order
1/32" edge banding (1/8" for 45-60-90 min)
3-5/8" minimum wall thickness (4-3/4" for fire rated)
Maximum openings, single door:
- 48" x 120" non-rated
- 48" x 108" 20-minute
- see Downloads for 45-60-90-minute
Maximum openings, double doors:
- 96" x 120" non-rated
- 96" x 108" 20-minute
- see Downloads for 45-60-90-minute
Sidelite or transom options
LEED credits
3 year warranty

Cherry

Heartwood varies from rich red to reddish-brown

Custom

Reclaimed hardwood, exotic Zebrawood, or the finest burlwood - all can be crafted into a beautiful door. All you need to do is know what you want and leave the rest to us.

(Zebrawood shown)

Mahogany

Natural Birch

Red Oak

Walnut

White Ash

White Birch

White Maple

White Oak

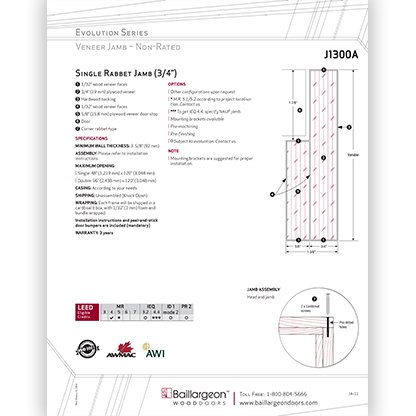

J1300A - non rated

Wood veneer face

3/4" thickness

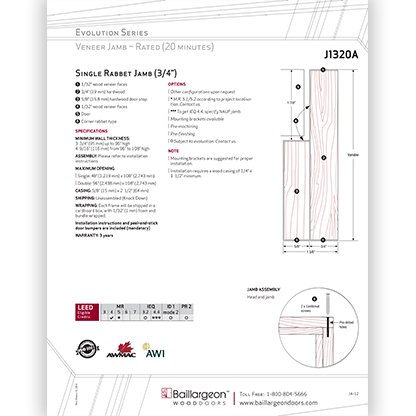

J1320 - 20 min

Wood veneer face

3/4" thickness

J1345A - 45 min

Wood veneer face

3/4" thickness

J1345B - 45 min

Wood veneer face

1" thickness

J1360A - 60 min

Wood veneer face

3/4" thickness

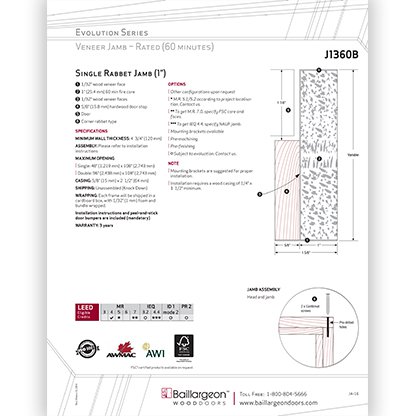

J1360B - 60 min

Wood veneer face

1" thickness

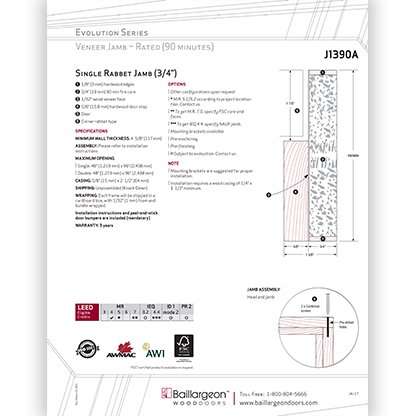

J1390A - 90 min

Wood veneer face

3/4" thickness

J1390B - 90 min

Wood veneer face

1" thickness

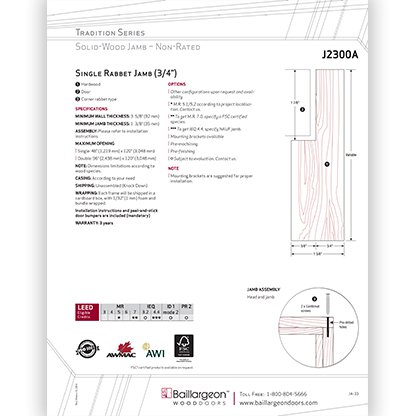

J2300A - non rated

Solid wood

3/4" thickness

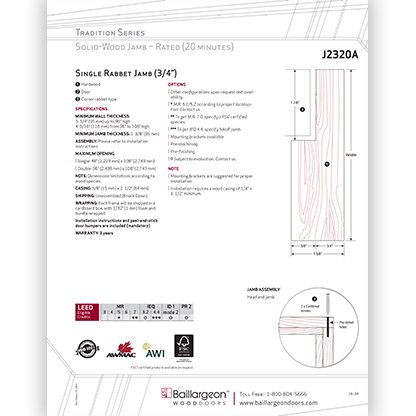

J2320A - 20 min

Solid wood

3/4" thickness

Custom finishing available: hand staining or water-based finish; custom stain or blend of basic colors. Environmentally friendly process.

All finish options are shown on White Maple wood species for illustration purposes only. To ensure accuracy, please contact your representative for a physical sample. For additional wood species finish variations, view the Baillargeon Stain Finishes in Downloads.

Colours are not exactly as shown due to technical limitations and monitor differences.
