Schlage L400-Series

Schlage L400-Series Mortise Lock Specifications

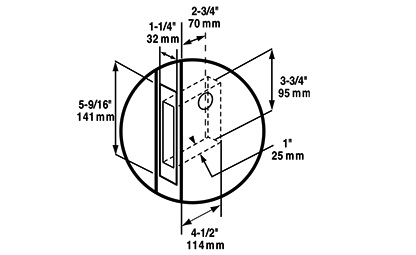

Door Thickness: 1-3/4” (44 mm) standard. 1-3/8” (35 mm) to 2-1/2” (64 mm) optional. Over 2-1/2” (64 mm) door ranges vary by function. No escutcheon available for 1-3/4” (44 mm) doors standard. 2” to 2-3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4”.

Backset:  2-3/4” (70 mm) only.

Armored Front:  4-7/16” x 3-5/8” x 1” (113 mm x 92 mm x 25 mm).

Case Size:  L400 Series: 4-7/16” x 3-5/8” x 1” (113 mm x 92 mm x 25 mm).

Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.

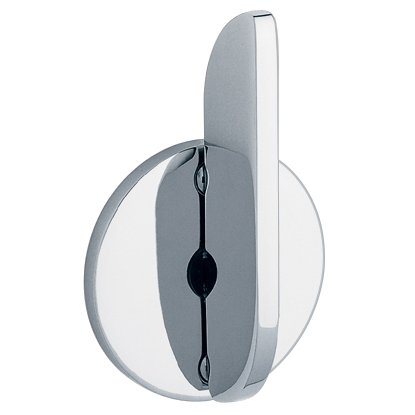

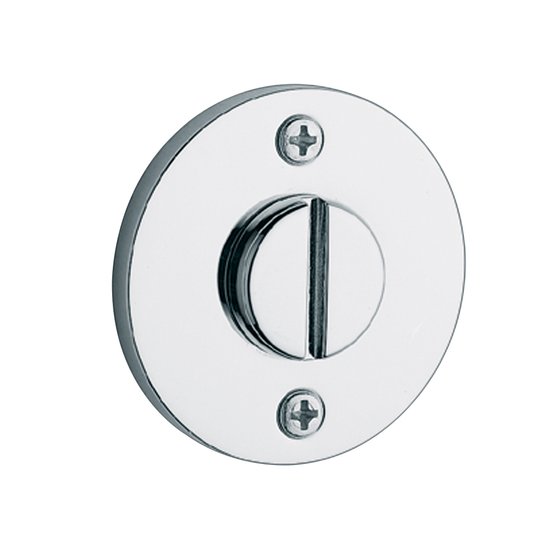

Exposed Trim:

• Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

Door Handing: One of the revolutionary features of the L-Series mortise lock is that handing can be done quickly and easily without opening the lock case. This means off-the-shelf delivery to meet today’s fast-track construction requirements. With quickly reversible lock chassis and mix-and-match levers and knobs, the L-Series mortise lock provides the ultimate in stocking, ordering and installation flexibility.

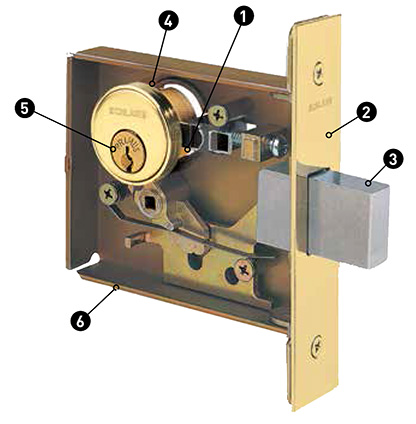

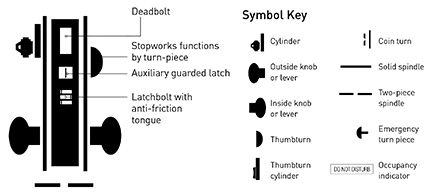

L400 Series – Features and Benefits:

• High-strength steel alloy cylinder retainer
• Armored front in brass, bronze or stainless steel; adjustable for door bevel
• 1" (25 mm) stainless steel throw deadbolt
• Deeper retainer groove in cylinder shell increases security against wrenching and pullout; all cylinders backwards compatible
• 6-pin Everest cylinder with patented keys standard
• Steel case and parts are corrosion resistant

Choose the right key system for your application

Schlage Classic and Everest key systems are designed to give you the level of security you need for every application. With optional keyway exclusivity, multi-level key hierarchy and cylinders that fit into a wide variety of locks, Schlage key systems and cylinders give you total control of your key system and building security. Unlike many other brands of high security cylinders, Schlage can easily intergrate its Primus XP and conventional cylinders into the same key system with no adverse effect on keying capacity. Primus XP keys will operate conventional cylinders, but conventional keys will not operate Primus XP cylinders. This means you can secure exterior doors and sensitive areas with Primus XP cylinders and use convential cylinders on the remaining doors. This cuts the cost of the overall job, and security can be tailored to meet the exact needs of each door without sacrificing the convenience of having a single building master key.

The Classic keyway family

Schlage Classic keyways provide security with no restrictions on duplication. Our Classic keyways can be easily upgraded or mixed with Primus XP for enhanced protection.

Primus XP High Security: The Primus XP keyway provides various levels of geographic exclusivity and requires authorization for duplication, ensuring better key control.

• Patented protection until July 2024
• Cylinders have a second set of pins for added security and pick resistance
• UL 437 versions available for additional protection against drilling and physical attacks
• Operates Primus XP and Classic (open) cylinders

The Everest patented keyway family

Everest patented keyways provide the highest levels of protection against unauthorized key duplication. Their patented design prevents non-authorized sources from manufacturing and distributing Everest key blanks. Our Everest key systems are suited for both new and existing key
systems, and give you the flexibility to expand and upgrade your key system as your needs change. The highest level of keyway security, Everest Primus XP keyways are distributed under careful protection guidelines to protect the exclusivity of the individual side bit milling patterns. Choose Everest Primus XP when the highest level of security and protection against unauthorized duplication is needed.

• Geographic exclusivity on key blanks
• Multiple patents protect against unauthorized key manufacture through July 2024
• Pick- and rake-resistant design
• Can be mixed and matched with non-Primus XP cylinders
• All key sections and master keying available at all levels of security
• Keys can be combinated using commonly available pin kits and key cutting equipment
• Keys are quick to cut and cylinders are easy to pin
• Thicker keys for added strength
• Three-year product warranty and a limited life-time warranty against key breakage
• Operates Everest Primus and Everest restricted cylinders

Choose the Right Cylinder for Each Application

Schlage cylinders are ideal for a wide range of commercial applications, including airports, hospitals, schools and universities, government and military buildings, offices and research laboratories. Choose from Classic Primus XP® or Everest® Primus XP high-security cylinders, Everest patented open and restricted cylinders, or the industry-standard Classic cylinders to fulfill your security needs and the demands of your specific installation.

Conventional Cylinders: Schlage locks are provided with cylinders precision-built to extremely close tolerances and the highest standards of accuracy. Using only solid brass bar stock plugs and shells, phosphor bronze springs, and nickel silver keys and bottom pins ensures long life and ease of operation.

Primus® High Security Cylinders: Primus high-security cylinders are available to add patented key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest or Classic keyways. In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and sidebar design, providing a “dual-locking” cylinder that is virtually pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Primus Lockout Cylinders: For doors where it is frequently desirable to disable all keys from operating the lock temporarily use lockout cylinders. The special lockout key can be removed while the plug is turned to the 11 o’clock position, preventing all normal operating keys, including master keys, from fully entering the cylinder. Suggested applications for lockout cylinders include laboratories, dark rooms, clean rooms and exterior doors to dormitories. Schlage will not master key lockout cylinders.

For more information, please see the L-Series Commercial Locks Catalog in the Downloads tab.

Caution: Double cylinder locks are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Certifications

• ANSI: With Concealed Shell Cylinder: A156.13 Grade 1 Operational and Security. ANSI/ASTM F476-76 Grade 40, UL Listed. L400: ANSI A156.5 Grade 1.
• UL / cUL: All locks listed for A label single doors, 4’ by 10’. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single-point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
